Mjic X Metric Banjo

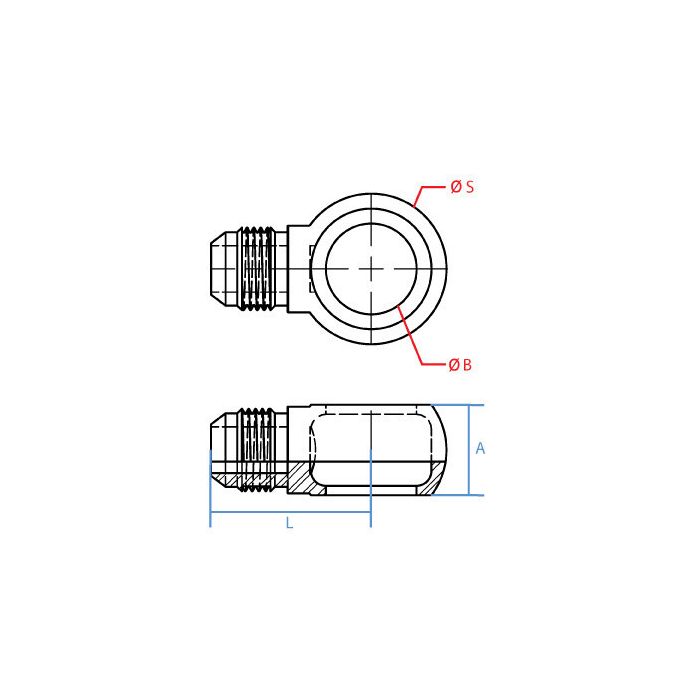

A Misc 15mm	B Misc 14mm	L Length 28mm	Adaptall Material Steel	S Misc 24mm	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-06-14	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting's got a 90 degree angle on it, right? trying to route a line in a tight spot and need something that ain't gonna run straight through

Question by: Bobby A on Jun 24, 2025, 6:27 PM

the elbow shape is built right into this fitting. It makes a full 90 degree turn, so if you're working around a bracket or trying to keep a hose from kinking in a cramped space, this thing handles that without needing an extra adapter in the mix. Total length on it is 28mm, so it's a compact unit.

Answer by: Customer Support on Jun 25, 2025, 8:24 PM

Will this banjo fitting hold up okay in a hydraulic system running at, say, 2000 psi? Just wanna make sure it's tough enough for my setup.

Question by: Ralph B on Feb 3, 2026, 5:47 PM

This fitting is constructed from high-grade steel, which provides the necessary durability for demanding hydraulic applications. While the specific pressure rating isn't listed, the steel build suggests it's suitable for systems requiring robust performance.

Answer by: Customer Support on Feb 5, 2026, 7:41 AM
