Mjic X Metric Banjo

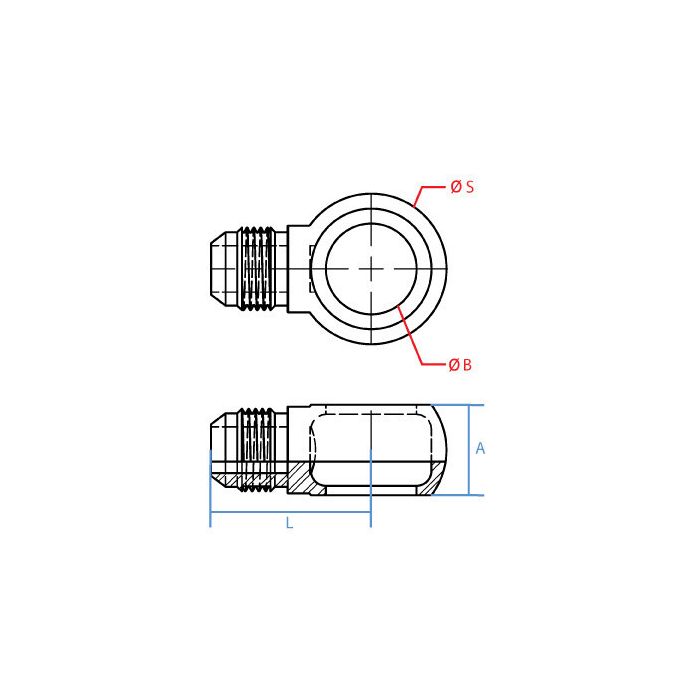

A Misc 10mm	B Misc 10mm	L Length 25mm	Adaptall Material Steel	S Misc 17mm	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-04-10	Product Weight 0.02 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a M10 x 1.0 port on a small hydraulic component and need to tie into a 1/4" JIC line, this banjo fitting do that job?

Question by: Merle M on Sep 12, 2025, 6:22 AM

Yeah, that's exactly what this fitting handles. One end is a 7/16-20 UNF male JIC connection, which is your standard 1/4" JIC, and the other end is an M10 x 1.0 metric male. The 90 degree elbow shape means you can route the line off to the side instead of straight out, which helps a lot in tight spots. Both are male connections, so make sure your component ports are female on both ends before you order.

Answer by: Customer Support on Sep 13, 2025, 8:25 PM
