Metric Banjo Bolt M26X1.50

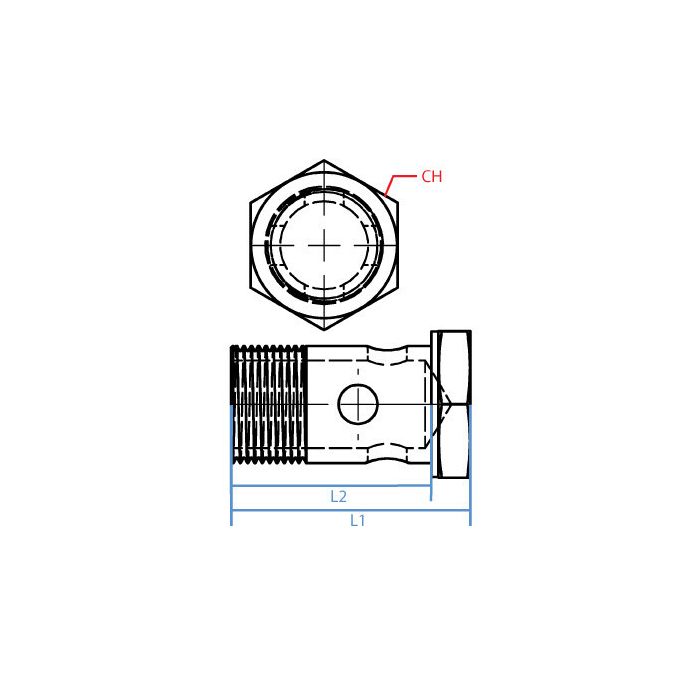

CH Width 32mm	L1 Length 56mm	L2 Length 46mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size 26mm	Side 1 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3068-26-150	Product Weight 0.34 lbs

Product Questions & Answers 1

Product Questions & Answers

bolt dimensions on this one, is the 56mm the full length or just the threaded portion?

Question by: Melvin R on Feb 1, 2026, 12:33 PM

The 56mm figure is the total length of the bolt (L1). The threaded or usable length, what Adaptall calls L2, comes in at 46mm. So you've got 10mm accounted for in the head and non-threaded section. Worth keeping both numbers in mind when you're checking clearance in a tight fitting area.

Answer by: Customer Support on Feb 2, 2026, 1:20 PM
