Metric Banjo Bolt M24X1.50

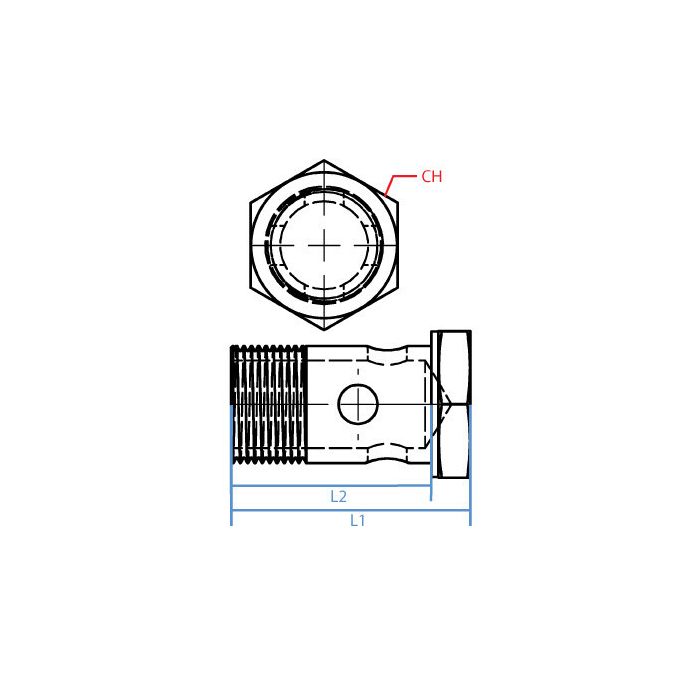

CH Width
30mm
L1 Length
49mm
L2 Length
41mm
Adaptall Material
Steel
Adaptall Shape
Component
Side 1 Callout
M24 X 1.5
Side 1 Gender
M
Side 1 Size
24mm
Side 1 Type
Metric
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
3068-24-150
Product Weight
0.28 lbs

Product Questions & Answers

Thread's listed as M24 x 1.5, that the full thread spec, or is there more to it than that?
Question by: Norm F on Apr 8, 2025, 8:25 PM
M24 x 1.5 covers it completely. M24 is the nominal diameter, 24mm, and 1.5 is the thread pitch in millimeters. That's the full metric thread callout you'd match against your port or fitting. The bolt is male on that end, so you're threading it into a female-threaded port. Wrench width is 30mm, total length runs 49mm, and the L2 measurement is 41mm if you need to account for installation depth.
Answer by: Customer Support on Apr 10, 2025, 4:44 PM
