Metric Banjo Bolt M18X1.50 3068-18-150

Specifications

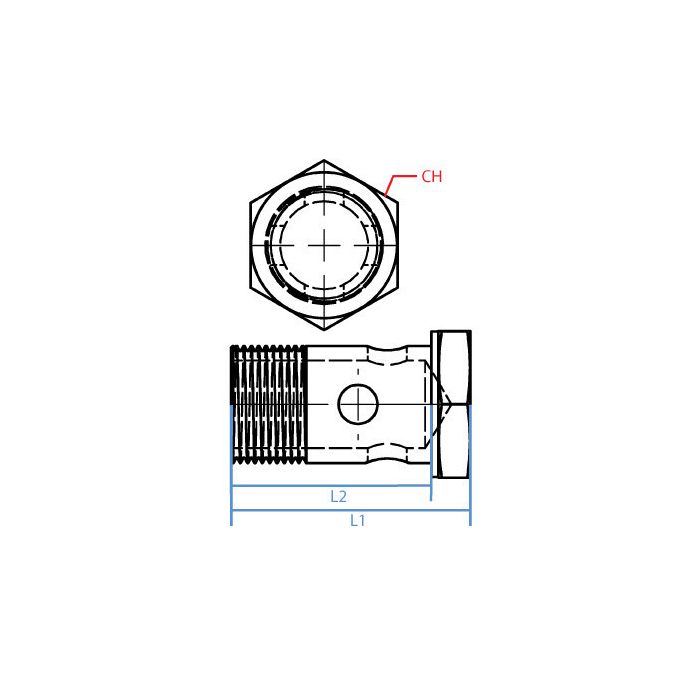

CH Width 24mm	L1 Length 44mm	L2 Length 36mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size 18mm	Side 1 Type Metric	Alternate Part Numbers Alternate Part Number C1FM56, Alternate Part Number F15M18X1.5, Alternate Part Number MI-08748830, Alternate Part Number MINO-03671X98023	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3068-18-150	Product Weight 0.14 lbs

Product Questions & Answers 3

Product Questions & Answers

got a banjo fitting with an M18 x 1.5 thread, is this the right bolt for it?

Question by: Larry M on Nov 2, 2025, 4:34 PM

For an M18 x 1.5 banjo setup, this bolt matches that male metric thread callout and is made to interface with standard banjo fittings. It also has a cross-drilled passage so fluid can flow through the bolt like a typical banjo connection.

Answer by: Customer Support on Nov 4, 2025, 8:12 AM

got an old banjo fitting on a tractor hydraulic line, looks like it takes an M18 thread, this bolt gonna fit that up right?

Question by: Stan E on Mar 8, 2026, 8:09 AM

M18 x 1.5 is the thread spec on this one, so as long as your fitting is cut to that same pitch and size, it should thread right in. The bolt runs 44mm on the overall length with a 36mm thread engagement length, and the hex is 24mm across the flats. Worth confirming those dimensions match what you're pulling off before you order.

Answer by: Customer Support on Mar 10, 2026, 6:14 AM

Just want to make sure this banjo bolt will fit my setup. It's a M18 x 1.5 thread, right?

Question by: Curt B on Sep 5, 2025, 8:13 AM

Correct, this banjo bolt has M18 x 1.5 metric threads. It's designed to interface reliably with standard banjo fittings that match those dimensions.

Answer by: Customer Support on Sep 7, 2025, 6:12 AM
