Metric Banjo Bolt M12X1.0

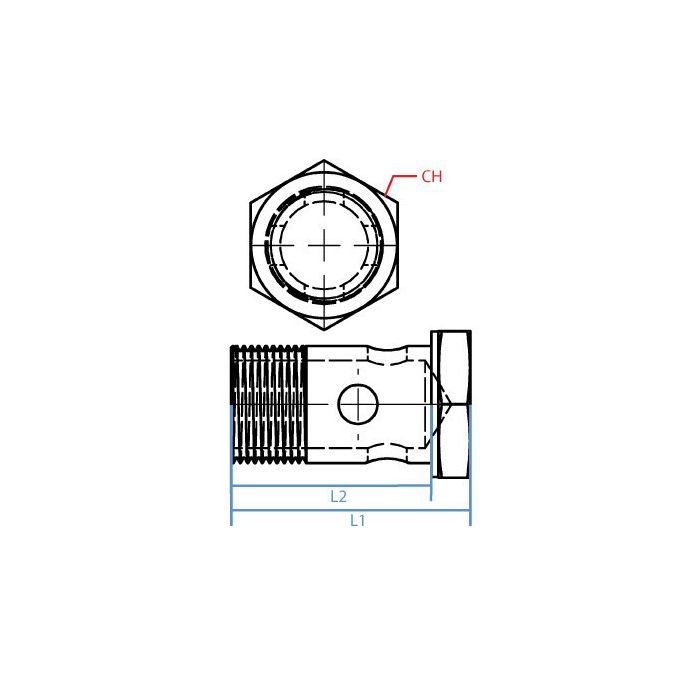

CH Width 17mm	L1 Length 28mm	L2 Length 23mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M12 X 1.0	Side 1 Gender M	Side 1 Size 12X1.0	Side 1 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3068-12-1	Product Weight 0.04 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to replace a banjo bolt i pulled off, how do i know this one’s the right size?

Question by: Rod E on Aug 6, 2025, 1:03 PM

Fit comes down to the thread and the basic dimensions. This bolt is M12 x 1.0 (male metric thread), with a 17mm hex for the wrench, 28mm overall length, and 23mm length under the head. If those match what you’re replacing, it’s the same size.

Answer by: Customer Support on Aug 8, 2025, 9:52 AM

bolt's got M12 x 1.0 threads -- will a standard 17mm wrench get it seated proper or do I need something specific?

Question by: Clint J on Oct 5, 2025, 1:06 PM

A 17mm wrench is exactly what you need for this one. The hex width is 17mm, so any standard 17mm open-end or combination wrench will give you full contact on the flats. Nothing specialty required.

Answer by: Customer Support on Oct 7, 2025, 8:07 AM

Is this steel bolt gonna hold up if it gets a little wet sometimes?

Question by: Chad T on May 19, 2025, 4:54 PM

Fabricated from high-quality steel, this banjo bolt offers good durability and corrosion resistance, so it should hold up just fine in environments where it might get damp on occasion.

Answer by: Customer Support on May 21, 2025, 11:11 AM
