Metric Banjo Bolt M10X1.0 3068-10-1

Specifications

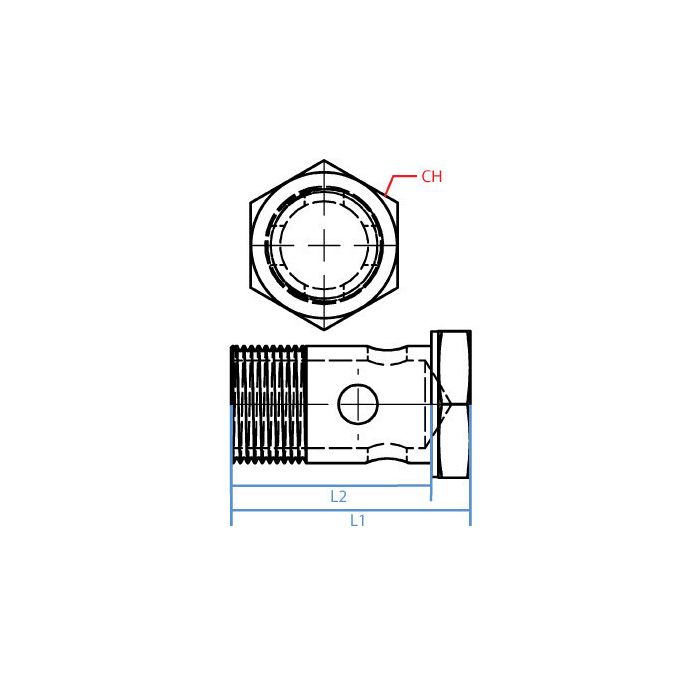

CH Width 14mm	L1 Length 24mm	L2 Length 19mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M10 X 1.0	Side 1 Gender M	Side 1 Size 10mm	Side 1 Type Metric	Alternate Part Numbers Alternate Part Number C1FM52, Alternate Part Number F15M10X1.0, Alternate Part Number MI-08748822, Alternate Part Number MINO-03671X98020	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3068-10-1	Product Weight 0.02 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this here banjo bolt made outta steel?

Question by: Roy W on Feb 1, 2026, 11:04 AM

You bet, this banjo bolt is crafted from high-grade steel, ensuring it holds up in demanding conditions.

Answer by: Customer Support on Feb 3, 2026, 6:06 AM

Part number on my old bolt is worn off and I need to cross-reference it, got a C1FM52 listed on my parts sheet. That the same thing as this M10x1.0 banjo bolt?

Question by: Brett C on Oct 19, 2025, 5:28 PM

C1FM52 does cross-reference to this bolt, part number 3068-10-1. A few other alternates that match it are F15M10X1.0 and MI-08748822, so if you run across any of those numbers on old paperwork or parts bins, you're looking at the same component. Steel construction, M10 x 1.0 thread, 14mm wrench width. Should drop right in where the original came out.

Answer by: Customer Support on Oct 21, 2025, 6:01 AM

trying to match up a banjo bolt i pulled off, what size and thread is this one?

Question by: Daryl S on Apr 22, 2025, 4:05 PM

The callout on this bolt is M10 x 1.0 with a 10 mm male metric thread, so it matches components that take an M10 x 1.0 banjo bolt.

Answer by: Customer Support on Apr 23, 2025, 7:39 PM
