Metric Banjo Bolt M8X1.0

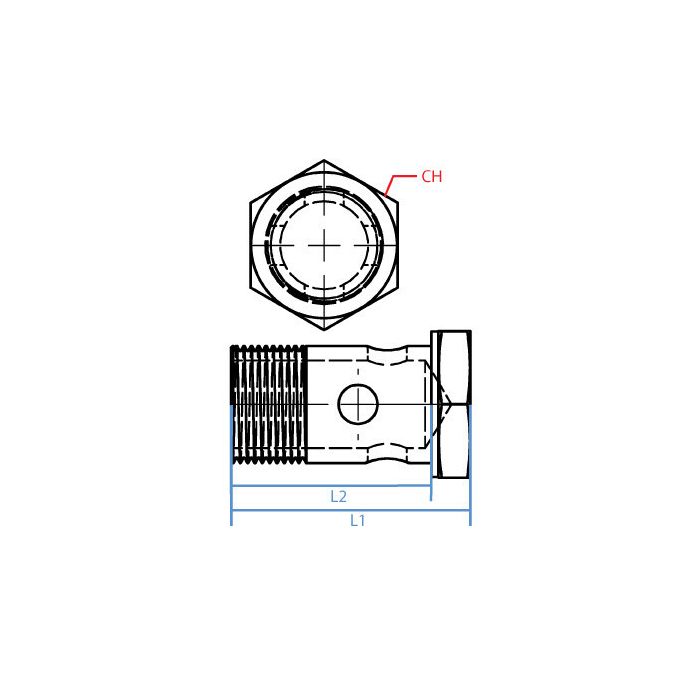

CH Width 12mm	L1 Length 21mm	L2 Length 16mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M8 X 1.0	Side 1 Gender M	Side 1 Size 8mm	Side 1 Type Metric	Brand Adaptall America	Pack Size 1.00	UOM EA	Supplier Part Number 3068-08-1	Product Weight 0.01 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a banjo fitting that needs an M8 thread with a 1.0 pitch, this bolt gonna seat up right against the port face without any spacing issues?

Question by: Wade W on Aug 23, 2025, 7:28 PM

For a standard M8 x 1.0 banjo fitting, the geometry here lines up well. The L1 length runs 21mm and L2 is 16mm, so the bolt has the reach to pull the banjo fitting flush against the port face without leaving a gap or bottoming out prematurely. That combination of lengths is pretty typical for compact hydraulic port connections where you need a clean, secure seat.

Answer by: Customer Support on Aug 25, 2025, 8:22 AM
