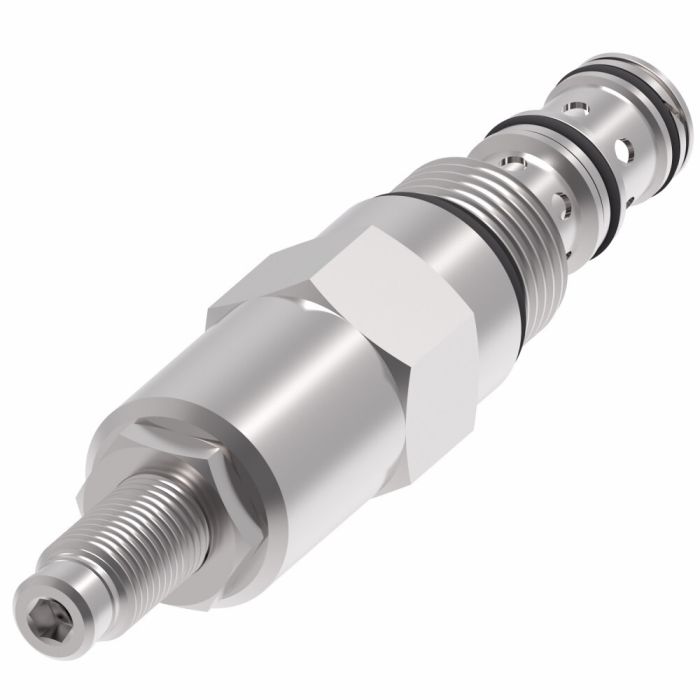

VICKERS-PFR12-10N-S-0-2.80-00 305AA00284A

Specifications

Application harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Vickers	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 350 L/min (92 USgpm)\|Perfect balance of pressure and flow\|Reliable, economical and compact	Flow Rate1 64 litre per minute	ICC SICV Flow Control Valves	Language English	Product Width 1	Style Adjustable Pressure Compensated, Flow Regulator	Sub Brand Vickers	Supplier Part Number 305AA00284A	Product Weight 0.54 lbs

Product Questions & Answers 2

Product Questions & Answers

Flow rate on this one says 64 liters per minute but the max listed is 350 L/min. what exactly does that 64 lpm figure refer to, is that the set point or just a rated output?

Question by: Harold B on May 23, 2025, 3:44 PM

The 64 liters per minute is the specific flow rate this valve is set to regulate at. The 350 L/min figure is the maximum flow capacity the valve can handle passing through it. So the valve is pressure-compensated to maintain that 64 lpm output even as system pressure fluctuates, while still being built to withstand up to 350 liters per minute moving through the circuit without damage or failure.

Answer by: Customer Support on May 25, 2025, 11:37 AM

I need a flow control valve for a harvester, will this one work okay?

Question by: Roy M on Jul 24, 2025, 9:19 PM

This Vickers PFR12-10N series flow control valve is designed for use in mobile and industrial applications such as harvesters. It offers precise flow control needed for efficient performance in demanding settings.

Answer by: Customer Support on Jul 26, 2025, 5:30 PM
