Hose Barb X Bsp Banjo Low Psi 3059HB-06-06

Specifications

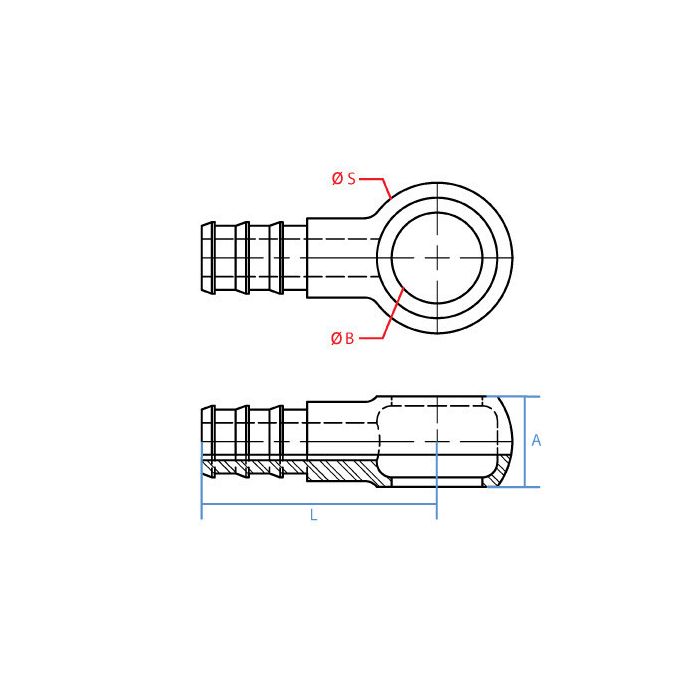

A Misc 18mm	B Misc 3/8	d Diameter 3/8	L Length 42mm	Adaptall Material Steel	S Misc 28mm	Adaptall Shape 90° Elbow	Side 1 Callout -	Side 1 Gender -	Side 1 Size 3/8"	Side 1 Type Hose Barb	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3059HB-06-06	Product Weight 0.08 lbs

Product Questions & Answers 3

Product Questions & Answers

got a 3/8 BSPP port on a small hydraulic manifold and need to run a hose off it at a right angle, this the fitting that'd work for that?

Question by: Sherry T on Mar 18, 2026, 5:02 PM

Yeah, that setup is exactly what this fitting handles. One end is a 3/8 inch hose barb, the other threads into a 3/8 inch BSPP male port, and the whole thing bends at 90 degrees. Total length runs 42mm, so it's a fairly compact piece. Just keep in mind it's rated for low-pressure use, so if your manifold runs high system pressure you'd want something else. For low-pressure hydraulic lines making a right-angle turn into a BSPP port, it fits the bill.

Answer by: Customer Support on Mar 20, 2026, 9:32 AM

got a hose line that needs to make a tight 90 into a port, is this the kind of fitting for that

Question by: Roger M on Jul 10, 2025, 4:45 PM

For a right angle turn between a hose and a BSPP port, this fitting matches that setup. One end is a hose barb, and the other end is a 3/8 inch BSPP male connection (G 3/8 - 19) in a 90 degree elbow shape.

Answer by: Customer Support on Jul 12, 2025, 6:14 AM

What kind of pressure can this banjo fitting handle?

Question by: Connie M on Dec 2, 2025, 11:41 AM

This fitting is designed for low-pressure applications, so it's best to keep that in mind when selecting it for your hydraulic system.

Answer by: Customer Support on Dec 4, 2025, 10:29 AM
