Hose Barb X Bsp Banjo Low Psi

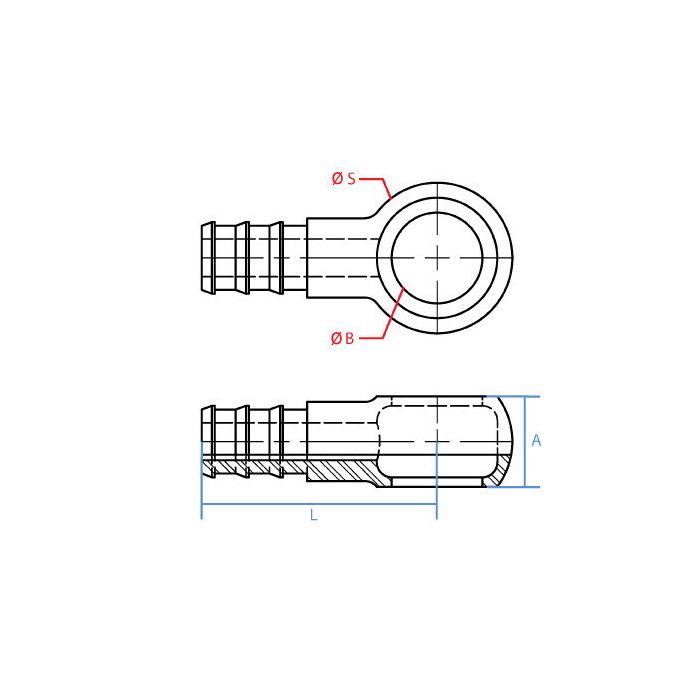

A Misc 14mm	B Misc 1/4	d Diameter 1/4	L Length 38mm	Adaptall Material Steel	S Misc 24mm	Adaptall Shape 90° Elbow	Side 1 Callout -	Side 1 Gender -	Side 1 Size 1/4"	Side 1 Type Hose Barb	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3059HB-04-04	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap a straight barb fitting for a 90, is this the one that goes from 1/4 hose to G 1/4-19?

Question by: Diane D on Nov 30, 2025, 8:42 PM

For a right-angle changeover, it matches a 1/4 inch hose barb on one side and a 1/4 inch BSPP male thread on the other, called out as G 1/4 - 19. It is a 90 degree elbow style fitting.

Answer by: Customer Support on Dec 2, 2025, 7:19 AM

fitting's got a 90 degree bend to it, right? trying to run a hose off a BSPP port without having to go straight out and then elbowing it somewhere else down the line

Question by: Debbie P on May 19, 2025, 4:52 PM

the elbow is built right into the fitting itself. One end threads into a G 1/4-19 BSPP male port, and the other end is a 1/4" hose barb, so the direction change happens right at the connection point. No extra elbow or adapter needed in between. At 38mm long overall, it stays pretty compact even with the 90 degree geometry worked in.

Answer by: Customer Support on May 21, 2025, 4:18 PM
