Mjic X Bsp Banjo

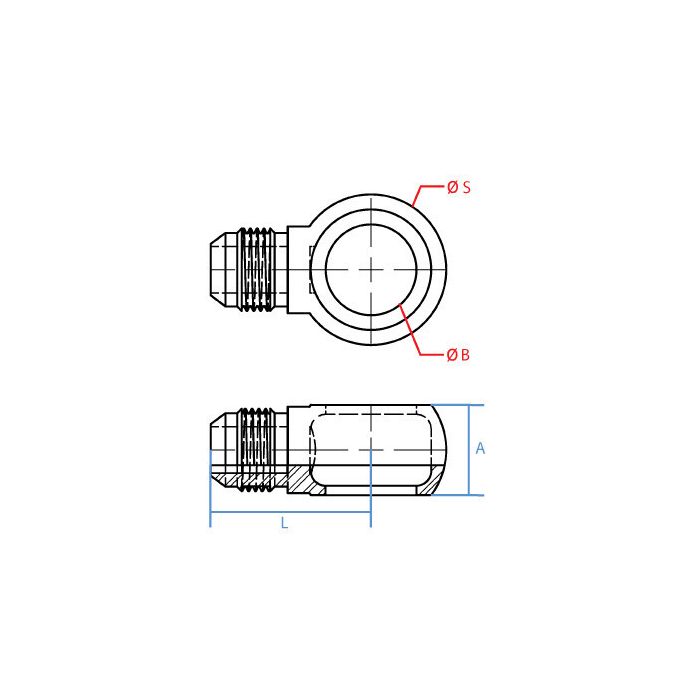

A Misc 22mm	B Misc 1/2	L Length 36mm	Adaptall Material Steel	S Misc 35mm	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-07760323, Alternate Part Number MINO-03671X13672	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3059-08-08	Product Weight 0.18 lbs

Product Questions & Answers

got a hose end that’s 3/4-16 UNF JIC male on one side and i need to land into a G 1/2-14 BSPP port, is this the right banjo elbow for that?

Question by: Hubert B on Jul 22, 2025, 4:59 PM

For that combo, it’s a match. Side 1 is a 3/4-16 UNF male JIC and Side 2 is a G 1/2-14 male BSPP, and both ends are the 1/2 inch size.

Answer by: Customer Support on Jul 24, 2025, 2:58 PM
