Mjic X Bsp Banjo

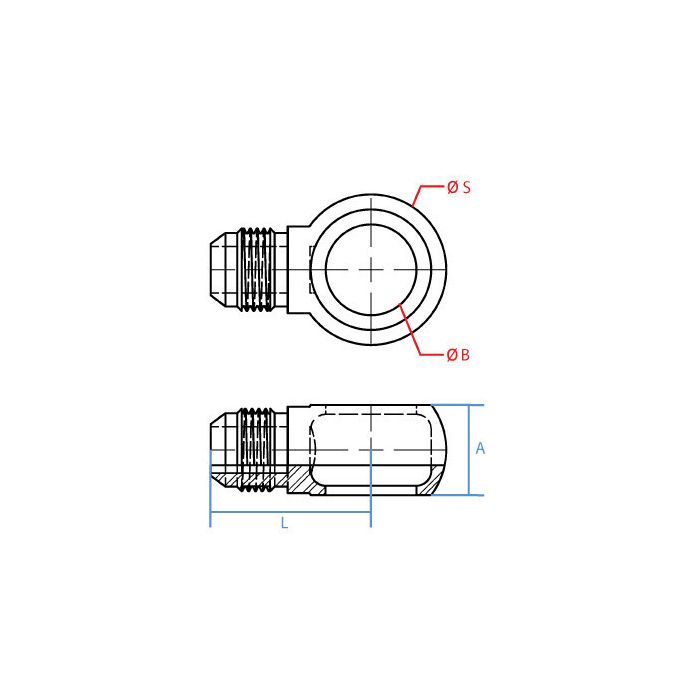

A Misc 18mm	B Misc 3/8	L Length 30mm	Adaptall Material Steel	S Misc 28mm	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3059-06-06	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose with 9/16-18 JIC on it. is this the right banjo to tie into a G 3/8-19 BSPP port, or am i mixing stuff up

Question by: Debbie P on Dec 31, 2025, 9:43 AM

For that combination, it matches up as a JIC male on one side and a BSPP male on the other. Side 1 is 9/16 - 18 UNF male JIC and side 2 is G 3/8 - 19 male BSPP, both in 3/8 inch size.

Answer by: Customer Support on Jan 1, 2026, 1:00 PM

Got a piece of equipment with a 3/8 BSPP port on it and need to tie into a JIC line, this fitting work for that?

Question by: Joyce W on Feb 21, 2026, 3:26 PM

That's what this one's built for. One end is a 9/16-18 UNF male JIC and the other is a G 3/8-19 male BSPP, both in 3/8 size. The 90 degree elbow shape helps when you're working in a tight spot and need to change direction on the line without fighting the hose routing.

Answer by: Customer Support on Feb 23, 2026, 7:00 AM
