Mjic X Bsp Banjo 3059-06-04

Specifications

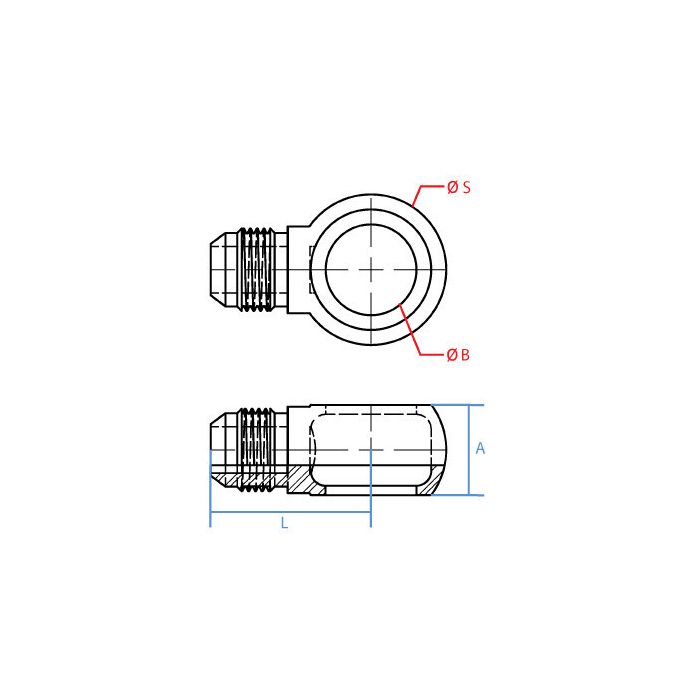

A Misc 15mm	B Misc 1/4	L Length 28mm	Adaptall Material Steel	S Misc 24mm	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3059-06-04	Product Weight 0.07 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a fitting on a tight bracket, is this one the 90 degree banjo with 9/16-18 jic on one side and g 1/4-19 bspp on the other?

Question by: Joyce H on Jun 8, 2025, 9:49 AM

For a tight-spot connection, this is a 90° elbow banjo adapter with a 9/16 - 18 UNF male JIC end on Side 1 and a G 1/4 - 19 male BSPP end on Side 2.

Answer by: Customer Support on Jun 9, 2025, 1:23 PM

Got a tight spot on a hydraulic line where I need to tie into a BSPP port, will this fitting bridge the gap between that and a JIC side without needing extra sealant or adapters?

Question by: Danny H on Jan 15, 2026, 9:25 PM

Steel construction and a 90 degree elbow profile make this a solid pick for tight routing situations. The male JIC side runs a 9/16-18 UNF thread at 3/8 inch, and the male BSPP side is G 1/4-19 at a quarter inch. No additional sealing is required, and there's no adjustability built in, so thread engagement and torque are what lock everything in place. One fitting, two thread standards, no extras needed.

Answer by: Customer Support on Jan 17, 2026, 6:14 AM

How about continuous use? Will this banjo fitting hold up in a hydraulic system that's running pretty much all the time?

Question by: Gary C on Jan 15, 2026, 7:49 AM

Designed for demanding industrial environments, the steel construction of this Adaptall banjo fitting should provide good durability under continuous use in a hydraulic system.

Answer by: Customer Support on Jan 17, 2026, 6:05 AM
