Male Bspp Banjo Bolt 3002-06

Specifications

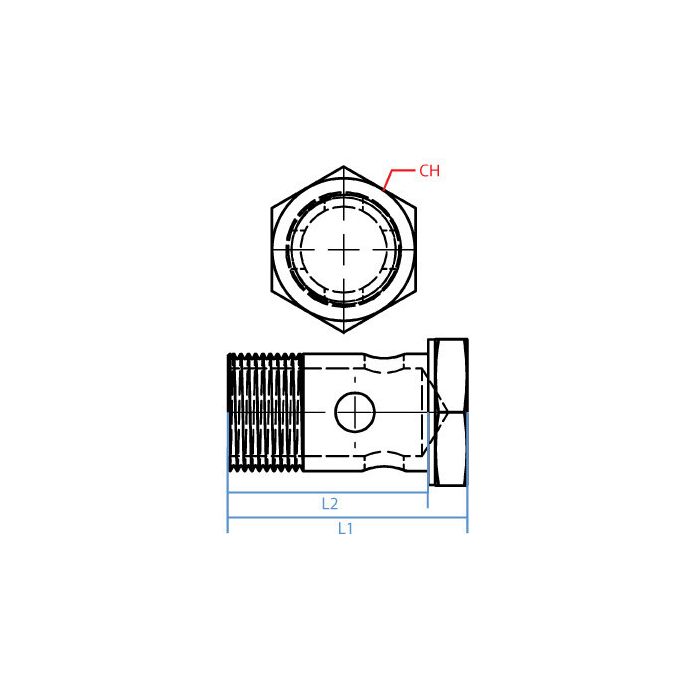

CH Width 22mm	L1 Length 38mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3002-06	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for this banjo bolt?

Question by: Bonnie W on Jan 16, 2026, 5:34 PM

You'll need a 22mm wrench to install this banjo bolt.

Answer by: Customer Support on Jan 18, 2026, 8:18 AM

trying to swap out a banjo bolt i’ve got, how do i tell if this one is the right thread?

Question by: Wade H on Jun 22, 2025, 3:48 PM

Start with the thread callout. This bolt is G 3/8-19 BSPP, which is a 3/8 inch British Standard Parallel Pipe thread at 19 threads per inch. BSPP is a straight thread and it seals with a bonded seal or washer, not by thread taper, so it needs a matching BSPP port and the proper sealing washer setup.

Answer by: Customer Support on Jun 24, 2025, 12:00 PM

Got a tight spot on a hydraulic line where I can't run a straight fitting, would a banjo bolt setup like this one work for that kind of situation?

Question by: Marvin B on May 10, 2025, 4:32 PM

Side-entry flow is exactly what banjo bolts are built for. The cross-drilled passage in this bolt lets fluid route at an angle to the port rather than straight through, so yeah, cramped or awkward installations where an inline fitting just won't fit are a natural use case for this style. The 38mm overall length and 31mm shoulder length give you a pretty specific engagement profile, so just make sure your banjo eye and sealing washers are sized to match before you commit to it.

Answer by: Customer Support on May 11, 2025, 6:14 PM
