Male Bspp Banjo Bolt

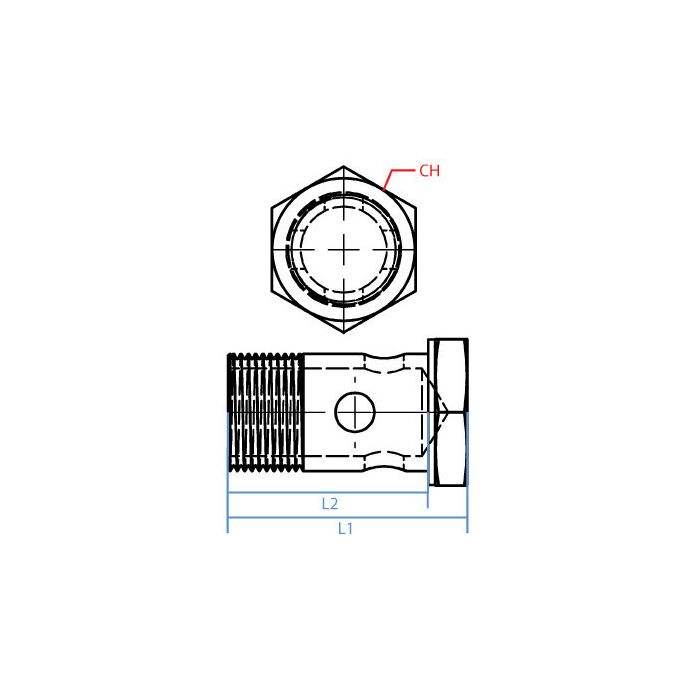

CH Width 19mm	L1 Length 32mm	L2 Length 25mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3002-04	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

What size is the thread on this banjo bolt, and is it metric or british?

Question by: Terry W on Jun 10, 2025, 11:34 AM

The thread is G 1/4 - 19, which is a British Standard Parallel Pipe thread, commonly called BSPP. That quarter-inch callout refers to the pipe size, not the physical thread diameter, so keep that in mind when you're matching it up to a port or fitting. The wrench flat across the hex is 19mm, and the bolt itself runs 32mm on the overall length with a 25mm measurement on the shorter end.

Answer by: Customer Support on Jun 12, 2025, 6:08 AM

got a banjo setup that takes a G 1/4 - 19 bolt, is this the right one or am i off a size?

Question by: Debbie T on Apr 3, 2026, 7:13 AM

This one is a male BSPP banjo bolt with a Side 1 callout of G 1/4 - 19 and a 1/4 inch Side 1 size, so it matches that thread callout.

Answer by: Customer Support on Apr 5, 2026, 8:05 AM
