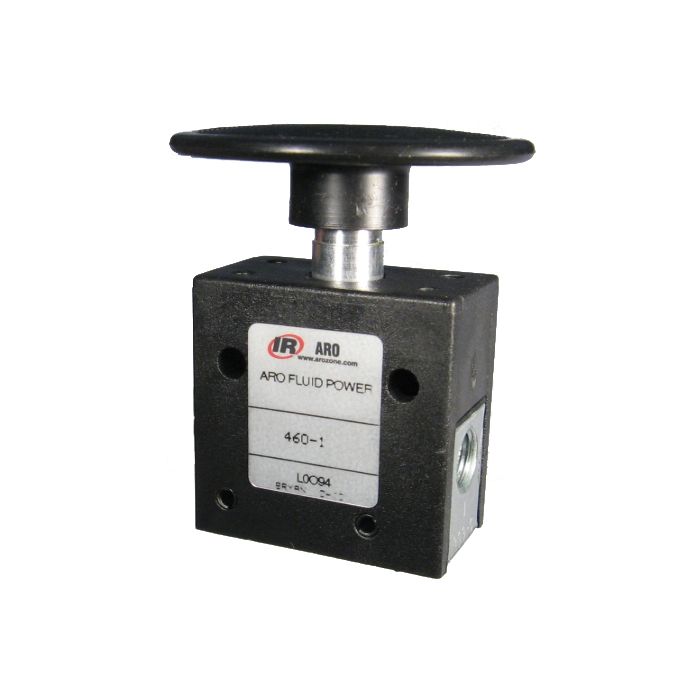

3-Way Palm Button Pneumatic Valves, Up To 7.5 SCFM & 150 PSIG
Application |
Valves are multipurpose and can be plumbed to perform as normally closed, normally open, selector or any 2-way function. |
Features |
2-1/2 inch buttons are available in four colors. Button Guard is available (20975). Available with 1/8 NPT threaded ports or 5/32 tube fittings. |
Flow Rating |
Based on 100 PSIG input and 85 PSIG output. |
Lubrication |
Not required. |
Operating Pressure Range |
30 to 150 PSIG. |
Temperature Range |
32°F to 160°F. |
Products
| Model Number | Ports | Valve Type | Flow Rating (SCFM) | CV Factor | Actuating Force | Travel (in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| 460-1 | 1/8 NPT | Multipurpose | 7.5 | 0.1950 | 3 | 0.078 |
|
