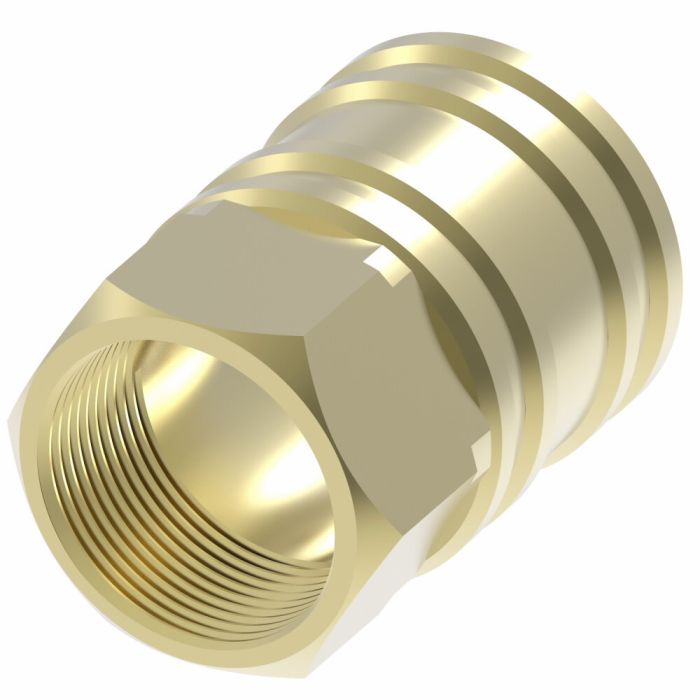

Danfoss / Eaton Hansen and Gromelle 2S16 Socket Brass 1/4-18 IN NPTF Female 1/4 IN Body Size 2S16

Specifications

Application Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPTF	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 5.6 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Female Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	Port Size 1/4	Product Material Brass	Product Width 0.97	Safety locking Mechanism None	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number 2S16	Valve Type Straight Thru	Product Weight 0.18 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this thing hold up for pressure washing equipment?

Question by: Peggy O on Sep 23, 2025, 10:56 AM

It's good for fluid transfer, and is also rated for pressure washing applications.

Answer by: Customer Support on Sep 25, 2025, 9:44 AM

What thread size does this socket use for connecting to my line?

Question by: Cheryl P on May 20, 2025, 2:38 PM

The port on this fitting is 1/4-18 NPTF, which is a standard tapered pipe thread. That means it'll seal on the threads themselves rather than relying on a separate washer or O-ring at the face. If your existing line already runs 1/4 NPTF female, you'd need a male adapter on that end to mate up with this socket.

Answer by: Customer Support on May 22, 2025, 6:24 AM
