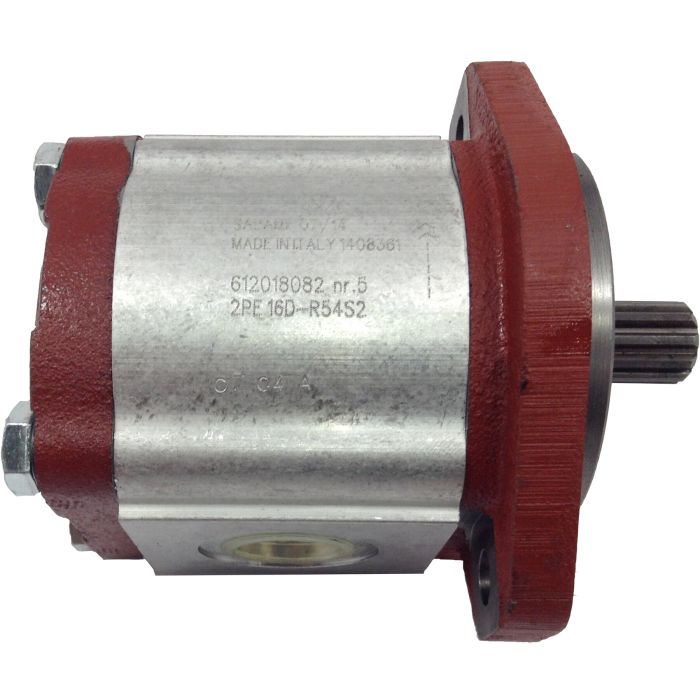

main product photo

2PE Series Aluminum Gear Pump, 0.40 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question
Displacement
0.40
Displacement
0.4
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE -12 Inlet, SAE -10 Outlet
Ports
SAE -12 Inlet, SAE -10 Outlet
Pressure Rating
3600
Rated Flow
3
Rated Flow
3
Rotation
CW
Shaft
3/4 St Keyed x 1.25 long SAE A
Shaft
3/4 St Keyed x 1.25 long SAE A
Speed Rating
4000 RPM
Speed Rating
4000 RPM
Supplier Part Number
612095952
Alternate Part Numbers
Alternate Part Number 2PE6.5D-R85S2-PUMP, Alternate Part Number C1MR53
Product Weight
7.64 lbs
Product Questions & Answers 1

Product Questions & Answers

rotation on this one is clockwise only, or can it be switched out if i need it to go the other way?
Question by: Frank C on Oct 18, 2025, 3:20 PM
Clockwise is the default, but the rotation can be changed. You'd reverse the positions of the drive shaft and driven shaft, then rotate the front flange. No special tools or additional parts are called out for that process, so it's a field-adjustable setup rather than a fixed configuration.
Answer by: Customer Support on Oct 20, 2025, 6:17 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
612035432 0.68 5.2 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035442 0.84 6.5 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081662 0.5 3.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081692 1.01 7.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612081722 1.58 12.3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612018082 1.01 7.8 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612033722 0.27 2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612034572 1.58 12.3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612035122 0.68 5.2 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035142 1.15 8.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612035322 1.37 10.6 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612036832 0.84 6.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079042 0.68 5.2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079072 1.37 10.6 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612079082 1.58 12.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612080552 0.5 3.8 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080562 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080662 1.58 12.3 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612081642 0.27 2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612081672 0.68 5.2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081682 0.84 6.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081702 1.15 8.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612081712 1.37 10.6 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612095942 0.4 3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095952 0.4 3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095962 0.4 3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
