main product photo

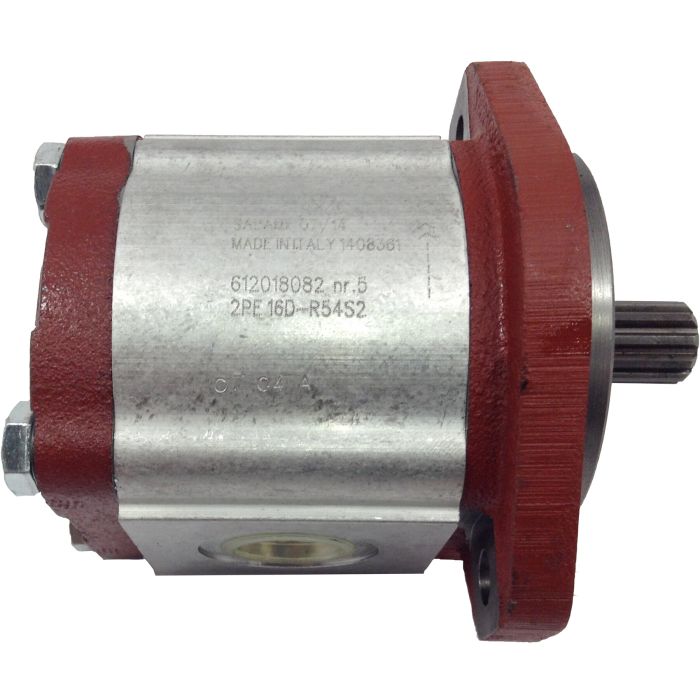

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question
Displacement
1.58
Displacement
1.58
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE -12 Inlet, SAE -10 Outlet
Ports
SAE -12 Inlet, SAE -10 Outlet
Pressure Rating
2600
Rated Flow
12.30
Rated Flow
12.3
Rotation
CW
Shaft
5/8 St. Keyed x 1.25, SAE A
Shaft
5/8 St. Keyed x 1.25, SAE A
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
612081722
Alternate Part Numbers
Alternate Part Number 2PE26D-R82S2, Alternate Part Number 2PE26D-R82S2 PUMP, Alternate Part Number C1MR50
Product Weight
4.52 lbs
Product Questions & Answers 2

Product Questions & Answers

What kind of fluid should I be using in this pump?
Question by: Tony B on Sep 19, 2025, 4:09 PM
Recommended fluids should have a viscosity between 85 and 297 SUS for normal operation. You can get away with 66 SUS if you drop the working pressure and speed way down, but don't go over 3635 SUS when you're starting it up.
Answer by: Customer Support on Sep 21, 2025, 6:53 AM
trying to swap a pump out on a 2-bolt SAE A mount. is this one set up for clockwise rotation and what ports does it have
Question by: Tommy A on Aug 7, 2025, 1:14 PM
For fit and hookup, it comes with a 2-bolt SAE A mounting flange and it is stocked in clockwise (CW) rotation. Porting on this model is SAE -12 on the inlet and SAE -10 on the outlet, with a 5/8 in keyed SAE A shaft (1.25 in long).
Answer by: Customer Support on Aug 8, 2025, 4:06 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
612035432 0.68 5.2 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035442 0.84 6.5 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081662 0.5 3.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081692 1.01 7.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612081722 1.58 12.3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612018082 1.01 7.8 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612033722 0.27 2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612034572 1.58 12.3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612035122 0.68 5.2 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035142 1.15 8.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612035322 1.37 10.6 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612036832 0.84 6.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079042 0.68 5.2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079072 1.37 10.6 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612079082 1.58 12.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612080552 0.5 3.8 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080562 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080662 1.58 12.3 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612081642 0.27 2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612081672 0.68 5.2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081682 0.84 6.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081702 1.15 8.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612081712 1.37 10.6 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612095942 0.4 3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095952 0.4 3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095962 0.4 3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
