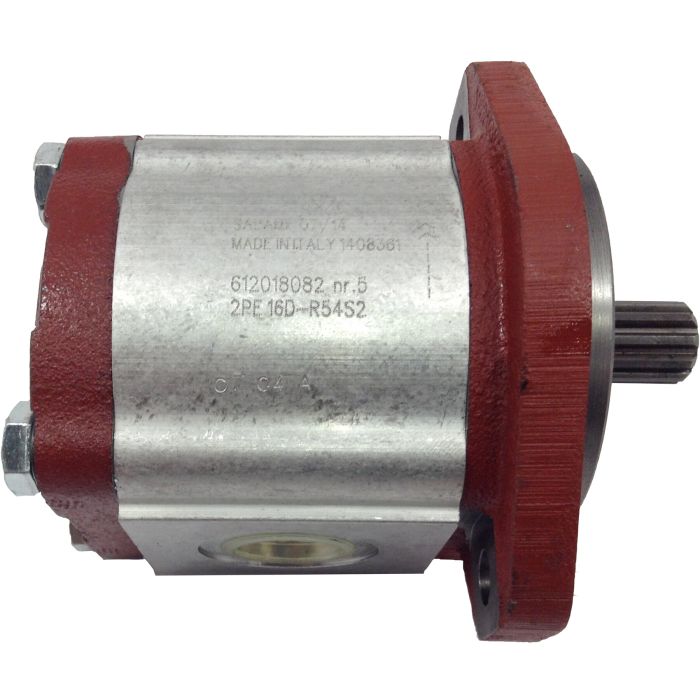

2PE Series Aluminum Gear Pump, 1.15 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question
Displacement
1.15
Displacement
1.15
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE -12 Inlet, SAE -10 Outlet
Ports
SAE -12 Inlet, SAE -10 Outlet
Pressure Rating
3140
Rated Flow
8.50
Rated Flow
8.5
Rotation
CW
Shaft
5/8 St. Keyed x 1.25, SAE A
Shaft
5/8 St. Keyed x 1.25, SAE A
Speed Rating
3000 RPM
Speed Rating
3000 RPM
Supplier Part Number
612081702
Alternate Part Numbers
Alternate Part Number 2PE19D-R82S2, Alternate Part Number C1MR48
Product Weight
6.20 lbs
Product Questions & Answers 3

Product Questions & Answers

trying to match up a pump here, is this one the 2-bolt SAE A mount with a 5/8 keyed SAE A shaft
Question by: Roy H on Nov 6, 2025, 4:44 PM
It’s set up with a 2-bolt SAE A mounting flange and a 5/8 straight keyed shaft that’s 1.25 inches long, listed as an SAE A shaft. Ports are SAE -12 on the inlet and SAE -10 on the outlet, and the rotation is clockwise as stocked.
Answer by: Customer Support on Nov 8, 2025, 9:30 AM
What kind of fluid should I be using in this pump?
Question by: Travis B on Feb 18, 2026, 1:03 PM
This gear pump works best with fluid viscosities between 85 SUS and 297 SUS for normal operation. You can go as low as 66 SUS if you’re willing to reduce the working pressure and run it at a lower speed.
Answer by: Customer Support on Feb 19, 2026, 7:24 PM
runs clockwise out of the box, right? just want to make sure before i go bolting it up to my PTO setup
Question by: Tammy Y on Jun 8, 2025, 7:27 AM
Clockwise rotation is standard on this pump. If you ever need to flip it to counterclockwise, that can be done by swapping the drive and driven shaft positions and rotating the front flange. No special parts required for that change.
Answer by: Customer Support on Jun 10, 2025, 8:42 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
612035432 0.68 5.2 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035442 0.84 6.5 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081662 0.5 3.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081692 1.01 7.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612081722 1.58 12.3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612018082 1.01 7.8 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612033722 0.27 2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612034572 1.58 12.3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612035122 0.68 5.2 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035142 1.15 8.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612035322 1.37 10.6 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612036832 0.84 6.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079042 0.68 5.2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079072 1.37 10.6 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612079082 1.58 12.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612080552 0.5 3.8 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080562 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080662 1.58 12.3 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612081642 0.27 2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612081672 0.68 5.2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081682 0.84 6.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081702 1.15 8.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612081712 1.37 10.6 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612095942 0.4 3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095952 0.4 3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095962 0.4 3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
