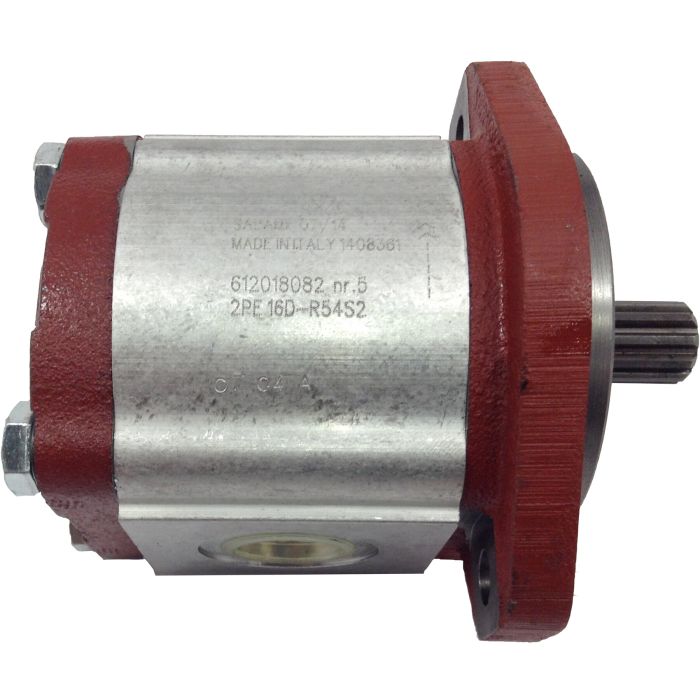

main product photo

2PE Series Aluminum Gear Pump, 0.27 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question
Displacement
0.27
Displacement
0.27
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE -12 Inlet, SAE -10 Outlet
Ports
SAE -12 Inlet, SAE -10 Outlet
Pressure Rating
3600
Rated Flow
2
Rated Flow
2
Rotation
CW
Shaft
5/8 St. Keyed x 1.25, SAE A
Shaft
5/8 St. Keyed x 1.25, SAE A
Speed Rating
4000 RPM
Speed Rating
4000 RPM
Supplier Part Number
2PE4.5D-R82S2
Alternate Part Numbers
Alternate Part Number 2PE4.5D-R82S2, Alternate Part Number 2PE4.5D-R82S2 PUMP, Alternate Part Number C1MR43
Product Weight
7.60 lbs
Product Questions & Answers 1

Product Questions & Answers

rotation on this one is clockwise out of the box, but can it be switched to run counterclockwise if needed?
Question by: Hugh T on Aug 4, 2025, 1:21 PM
Clockwise is the default, but the rotation can be reversed. You'd do it by swapping the positions of the drive shaft and driven shaft, then rotating the front flange. It's a mechanical reconfiguration rather than an electronic or software change, so it's done at the pump itself during setup.
Answer by: Customer Support on Aug 6, 2025, 12:45 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
612035432 0.68 5.2 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035442 0.84 6.5 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081662 0.5 3.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081692 1.01 7.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612081722 1.58 12.3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612018082 1.01 7.8 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612033722 0.27 2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612034572 1.58 12.3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612035122 0.68 5.2 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035142 1.15 8.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612035322 1.37 10.6 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612036832 0.84 6.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079042 0.68 5.2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079072 1.37 10.6 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612079082 1.58 12.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612080552 0.5 3.8 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080562 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080662 1.58 12.3 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612081642 0.27 2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612081672 0.68 5.2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081682 0.84 6.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081702 1.15 8.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612081712 1.37 10.6 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612095942 0.4 3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095952 0.4 3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095962 0.4 3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
