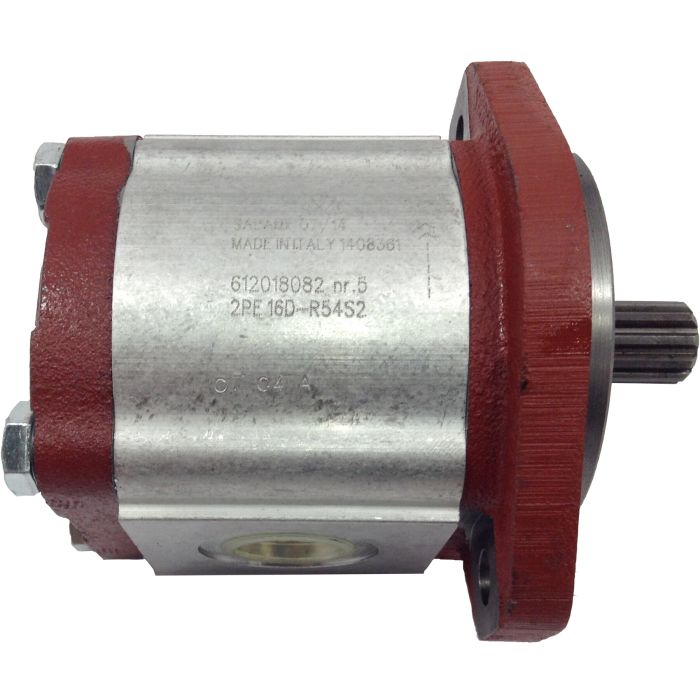

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question
Displacement
0.84
Displacement
0.84
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE -12 Inlet, SAE -10 Outlet
Ports
SAE -12 Inlet, SAE -10 Outlet
Pressure Rating
3600
Rated Flow
6.50
Rated Flow
6.5
Rotation
CW
Shaft
9 Tooth SAE A Splined
Shaft
9 Tooth SAE A Splined
Speed Rating
3500 RPM
Speed Rating
3500 RPM
Supplier Part Number
612080562
Alternate Part Numbers
Alternate Part Number 2PE13.8D-R52S2, Alternate Part Number C1MR41
Product Weight
7.00 lbs
Product Questions & Answers 2

Product Questions & Answers

Will this gear pump work okay with a hydraulic system that sees pressures around 3500 PSI pretty regularly?
Question by: Carl D on Sep 17, 2025, 8:28 PM
This 2PE series pump handles continuous pressures up to 3600 PSI, so it should work fine in your system. Just keep in mind the peak pressure is rated at 4350 PSI.
Answer by: Customer Support on Sep 19, 2025, 6:48 AM
pump's rated for 3600 PSI continuous but i got a system that occasionally spikes up around 4000, is that gonna be an issue or is there enough headroom built in?
Question by: Eddie C on Nov 20, 2025, 7:31 AM
Peak pressure on this unit is rated at 4350 PSI, so occasional spikes into the 4000 range fall within that ceiling. The continuous working pressure is 3600 PSI, meaning sustained operation needs to stay at or below that. Intermittent excursions above continuous rating are normal in hydraulic systems, and the 750 PSI of headroom between continuous and peak gives you a reasonable buffer for those transient spikes.
Answer by: Customer Support on Nov 21, 2025, 5:54 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
612035432 0.68 5.2 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035442 0.84 6.5 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081662 0.5 3.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081692 1.01 7.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612081722 1.58 12.3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612018082 1.01 7.8 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612033722 0.27 2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612034572 1.58 12.3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612035122 0.68 5.2 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035142 1.15 8.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612035322 1.37 10.6 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612036832 0.84 6.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079042 0.68 5.2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079072 1.37 10.6 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612079082 1.58 12.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612080552 0.5 3.8 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080562 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080662 1.58 12.3 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612081642 0.27 2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612081672 0.68 5.2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081682 0.84 6.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081702 1.15 8.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612081712 1.37 10.6 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612095942 0.4 3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095952 0.4 3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095962 0.4 3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
