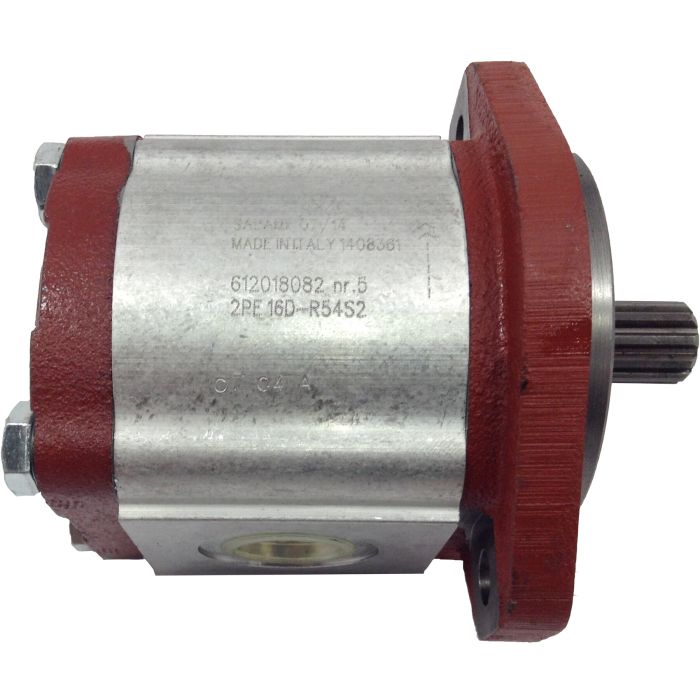

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question
Displacement
0.68
Displacement
0.68
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE -12 Inlet, SAE -10 Outlet
Ports
SAE -12 Inlet, SAE -10 Outlet
Pressure Rating
3600
Rated Flow
5.20
Rated Flow
5.2
Rotation
CW
Shaft
3/4 St Keyed x 1.25 long SAE A
Shaft
3/4 St Keyed x 1.25 long SAE A
Speed Rating
3500 RPM
Speed Rating
3500 RPM
Supplier Part Number
612035432
Alternate Part Numbers
Alternate Part Number 2PE11.3D-R85S2, Alternate Part Number C1MR33
Product Weight
8.00 lbs
Product Questions & Answers 5

Product Questions & Answers

rotation on this one is clockwise out of the box, but can it be swapped to run CCW if I need it to?
Question by: Troy T on Mar 29, 2025, 7:16 AM
Clockwise is the default, but yes, the rotation can be changed. You do it by reversing the positions of the drive shaft and driven shaft, then rotating the front flange. It's a mechanical change rather than a software or valve adjustment, so plan accordingly when you're setting up your system.
Answer by: Customer Support on Mar 31, 2025, 7:53 AM
What kind of pressure can this gear pump handle?
Question by: Rod C on Jul 13, 2025, 10:25 AM
It's rated for continuous operation up to 3600 PSI. Peak pressures can go up to 4350 PSI.
Answer by: Customer Support on Jul 14, 2025, 4:55 PM
got a bracket already drilled for a 2 bolt SAE A pump. is this one the right mount and shaft style for that kind of setup?
Question by: Wes C on Dec 17, 2025, 8:40 PM
It uses a 2-bolt SAE A mounting flange and a 3/4 standard keyed SAE A shaft that is 1.25 inches long, so it matches the common SAE A 2-bolt mount and keyed shaft arrangement.
Answer by: Customer Support on Dec 19, 2025, 10:32 AM
pump comes rated at 3600 PSI continuous -- what happens if the system spikes above that every now and then?
Question by: Diane E on Mar 21, 2026, 3:02 PM
Peak pressure on this unit goes up to 4350 PSI, so occasional spikes above the 3600 PSI continuous rating are within what the pump is built to handle. The DU bearings and floating bushing design are part of what makes that possible. That said, intermittent means just that -- short-duration spikes, not sustained high-pressure operation. Keep the system running at or below 3600 PSI for normal work and you'll be in good shape.
Answer by: Customer Support on Mar 23, 2026, 6:26 AM
trying to swap out a worn pump, what mounting and shaft does this one come with?
Question by: Dean A on Oct 25, 2025, 5:39 PM
For fit-up, it uses a 2-bolt SAE A mounting flange and a 3/4 inch straight keyed SAE A shaft that is 1.25 inches long.
Answer by: Customer Support on Oct 27, 2025, 10:50 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
612035432 0.68 5.2 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035442 0.84 6.5 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081662 0.5 3.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081692 1.01 7.8 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612081722 1.58 12.3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612018082 1.01 7.8 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3600
612033722 0.27 2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612034572 1.58 12.3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612035122 0.68 5.2 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612035142 1.15 8.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612035322 1.37 10.6 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612036832 0.84 6.5 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079042 0.68 5.2 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612079072 1.37 10.6 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612079082 1.58 12.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612080552 0.5 3.8 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080562 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612080662 1.58 12.3 2-Bolt SAE A 11 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 2500 RPM 2600
612081642 0.27 2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612081672 0.68 5.2 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081682 0.84 6.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3500 RPM 3600
612081702 1.15 8.5 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 3000 RPM 3140
612081712 1.37 10.6 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 2750 RPM 2900
612095942 0.4 3 2-Bolt SAE A 5/8 St. Keyed x 1.25, SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095952 0.4 3 2-Bolt SAE A 3/4 St Keyed x 1.25 long SAE A SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
612095962 0.4 3 2-Bolt SAE A 9 Tooth SAE A Splined SAE -12 Inlet, SAE -10 Outlet CW 4000 RPM 3600
