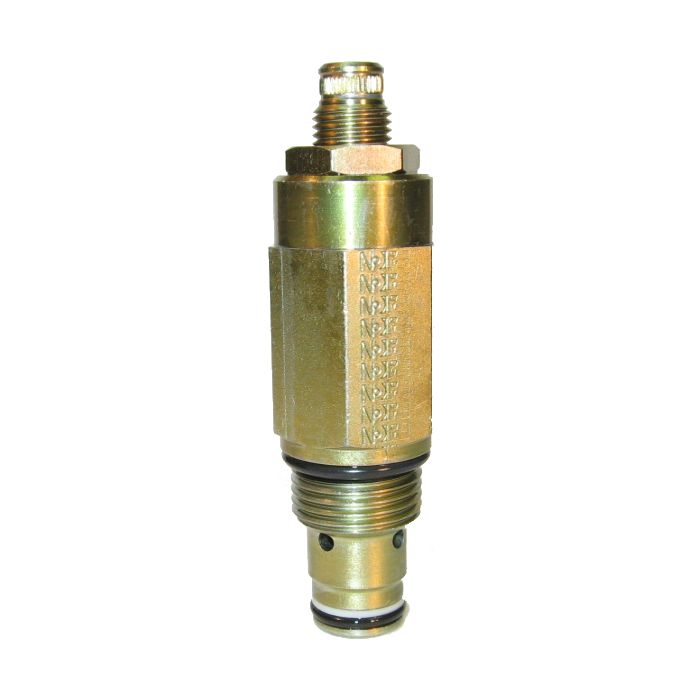

2CFR60 Series 2-Port Pressure Compensated Priority Flow Controls, Up To 5000 PSI & 16 GPM
Cartridge |
Model 2CFRC60-*, sold separately. |
Features |
This is a two-port, restrictive flow regulator with a built in free flow check valve. Typical uses include the control of actuator speed by regulating the flow into or out of the actuator (meter-in or meter-out). |
Housing |
Cavity size A7447, sold separately, see |
Maximum Flow Rate |
16 GPM. |
Maximum Operating Pressure |
5000 PSI. |
Operation |
Flow into the inlet of the valve passes through the adjustable orifice and out of the regulated port. The inbuilt check allows free return of flow (2 to 1). |
Recommended Filtration |
Cleanliness Level 18/13 or better. |
Temperature Range |
–22° to +194°F |
Products
| Part Number | Model Number | Flow Range | Adjustment Style | Housing | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 405AA00054A | 2CFRC60P6S | 1.6 - 16 | Screw | None | Nitrile |
|
