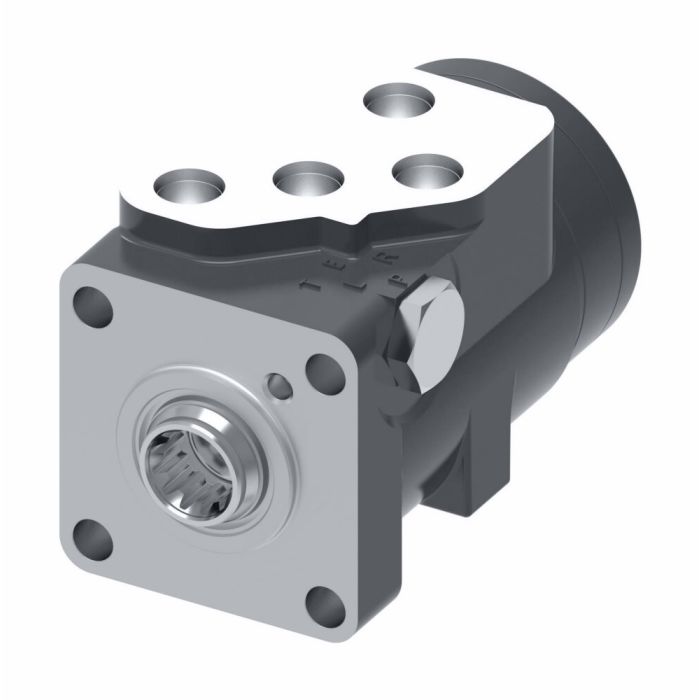

SRS 5 STEERING VALVE

Application Lawn and Garden Equipment, Turf Equipment, Golf Course Maintenance Equipment, Lift Trucks, Compact Utility Tractors	Brand Danfoss – Hydraulics	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Flow Rate 11-19 L/min (3-5 gal/min)\|Maximum pressure 140 bar (2,030 psi)\|Small turf care and utility vehicle applications	Flow Rate1 19 LPM	ICC Steering Control Unit (SCU)	Language English	Product Width 3.17	Special Features None	Sub Brand None	Supplier Part Number 291-1043-003	Product Weight 11.00 lbs

Product Questions & Answers 1

Product Questions & Answers

flow rate on this thing is listed as 11–19 L/min but the max attribute says 19 LPM, so is 19 really the top end it'll handle or is there some wiggle room above that?

Question by: Cody G on Jan 30, 2026, 6:19 PM

19 L/min is the ceiling on this valve, which works out to about 5 gallons per minute. The range listed reflects typical operating flow, and 19 LPM is where it tops out. Pushing beyond that isn't something this unit is rated for, so if your circuit runs hotter than that you'd be looking at the wrong valve for the job.

Answer by: Customer Support on Feb 1, 2026, 12:18 PM
