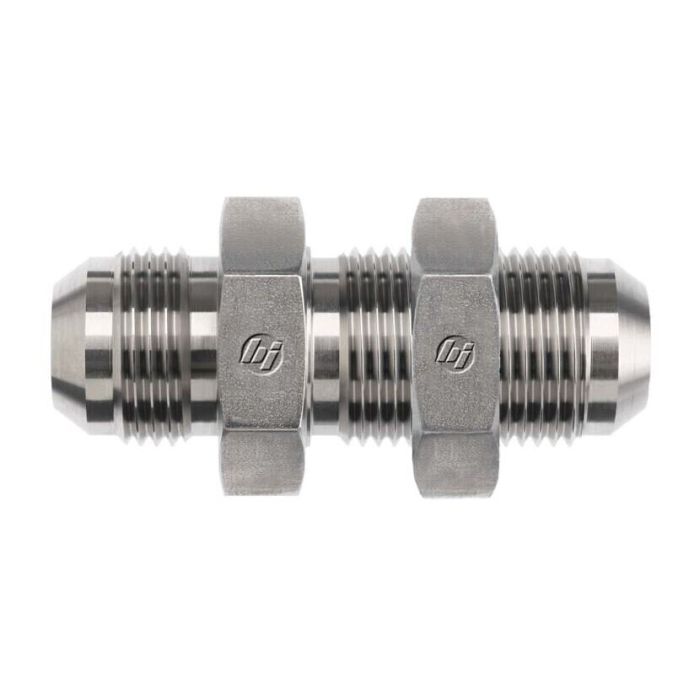

8MJ-8MJ bulkhead Straight

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2700-LN-08-08-SS	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this bulkhead fitting work with standard JIC connections?

Question by: Freddie A on Sep 12, 2025, 6:51 PM

Yes, it's designed with male JIC SAE 37-degree flare connections on both ends, so it should fit right into any system using those same standard connections.

Answer by: Customer Support on Sep 14, 2025, 10:14 AM

Both ends on this fitting are male JIC, right? Trying to figure out if it'll work passing through a panel on my hydraulic unit without needing adapters on either side.

Question by: Neil H on Jun 5, 2025, 11:19 AM

Both connections are male JIC SAE 37-degree flare, 3/4-16 thread on each end, built to SAE J514 spec. The bulkhead design includes a lock nut, so it mounts directly through a panel and holds position without extra hardware on either side. As long as your mating fittings are female JIC at that thread size, you won't need adapters.

Answer by: Customer Support on Jun 7, 2025, 6:51 AM
