90*Din Bulkhead Union Complete

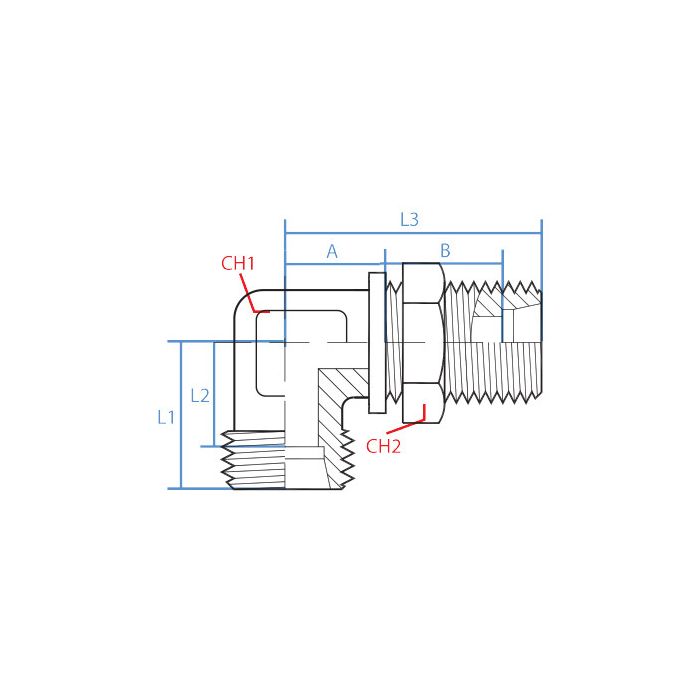

A Misc 24mm	B Misc 31.5mm	CH1 Width 27mm	CH2 Width 32mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 64mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5042S-16C	Product Weight 0.58 lbs

Product Questions & Answers 1

Product Questions & Answers

both sides on this thing are M24 x 1.5 DIN tube, right? just want to make sure I ain't gotta mix two different fittings to make it work

Question by: Freddie S on Jun 22, 2025, 2:35 PM

Correct on both counts. Each side is M24 x 1.5 male DIN tube in size S16, so the connection is fully symmetrical. No adapting or mixing required, which makes assembly a lot more straightforward when you're working in a tight panel setup.

Answer by: Customer Support on Jun 24, 2025, 7:17 AM
