Din Bulkhead Union

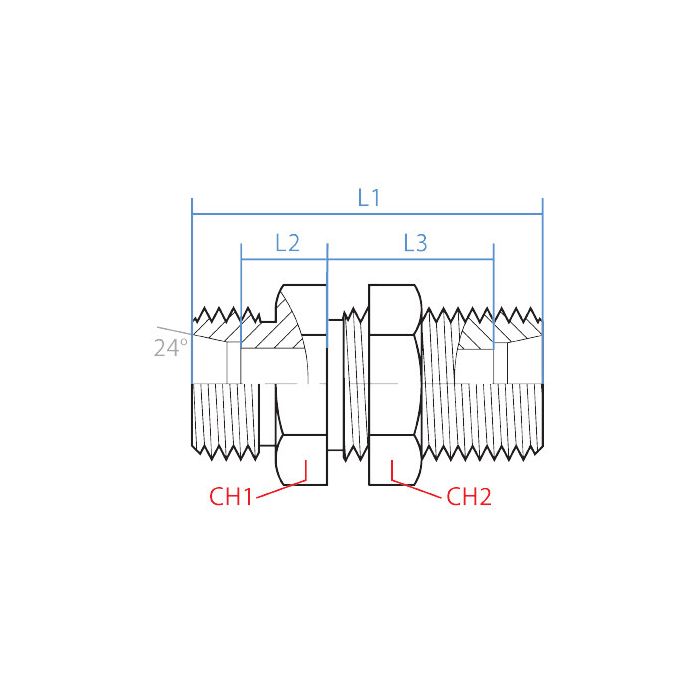

CH1 Width 65mm	CH2 Width 65mm	L1 Length 91mm	L2 Length 22mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender M	Side 1 Size S38	Side 1 Type Din Tube	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size S38	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040S-38	Product Weight 2.38 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this bulkhead union can handle gettin' mounted through a panel?

Question by: Cheryl R on Oct 23, 2025, 9:53 PM

This steel-constructed union is designed with a specific bulkhead configuration, indicated by its name. It is made to pass securely through panels or walls, connecting tubes on either side.

Answer by: Customer Support on Oct 25, 2025, 6:22 AM

What size tubing does this union work with on both ends?

Question by: Roger H on Jan 24, 2026, 6:47 AM

Both sides are built for S38 DIN tube connections, with M52 X 2.0 male threading on each end. So if you're running 38mm DIN tube on both sides of a bulkhead panel, this fitting matches up on both faces without needing any adapters in between.

Answer by: Customer Support on Jan 26, 2026, 6:11 AM
