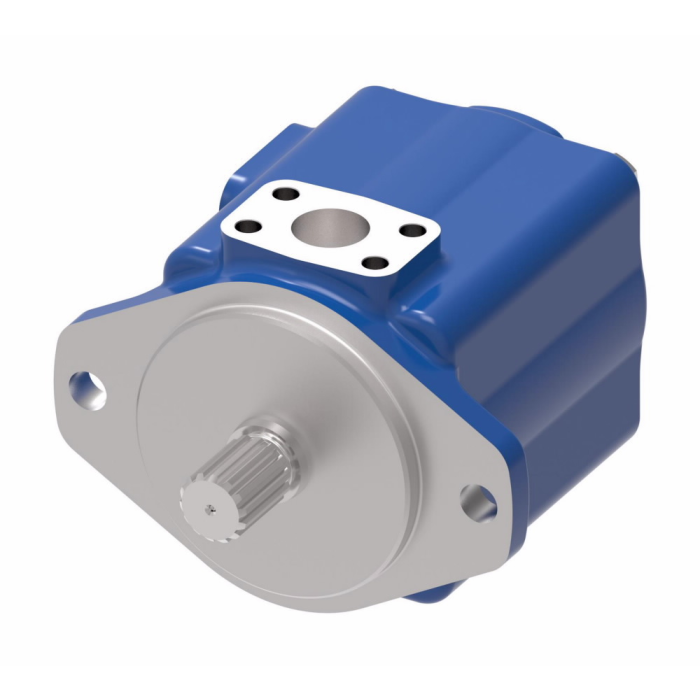

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.45
Displacement
2.45
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
in-Line with Outlet
Rated Flow
18
Rated Flow
18
Ring Size
12
Ring Size
12
Rotation
CCW
Seal Material
Buna-N
Series
25VQ
Shaft
13 Tooth SAE B Splined
Shaft
13 Tooth SAE B Splined
Special Features
None
Speed Rating
2700 RPM
Speed Rating
2700 RPM
Supplier Part Number
429946-7
Product Weight
32.00 lbs
Product Questions & Answers 1

Product Questions & Answers

got a dump truck application running CCW rotation, does this pump match up to that?
Question by: Pete B on Feb 23, 2026, 12:27 PM
CCW rotation is confirmed for this pump, so that lines up. It runs on a 13 tooth SAE B splined shaft with a 2-bolt SAE B mounting flange, which is a common setup in dump truck hydraulic systems. Rated flow comes in at 18 GPM and it'll handle up to 3000 PSI, so for most standard dump applications that's plenty of capacity. Inlet is 1-1/2 inch and outlet is 1 inch, both SAE 4-bolt flange ports.
Answer by: Customer Support on Feb 25, 2026, 8:10 AM
