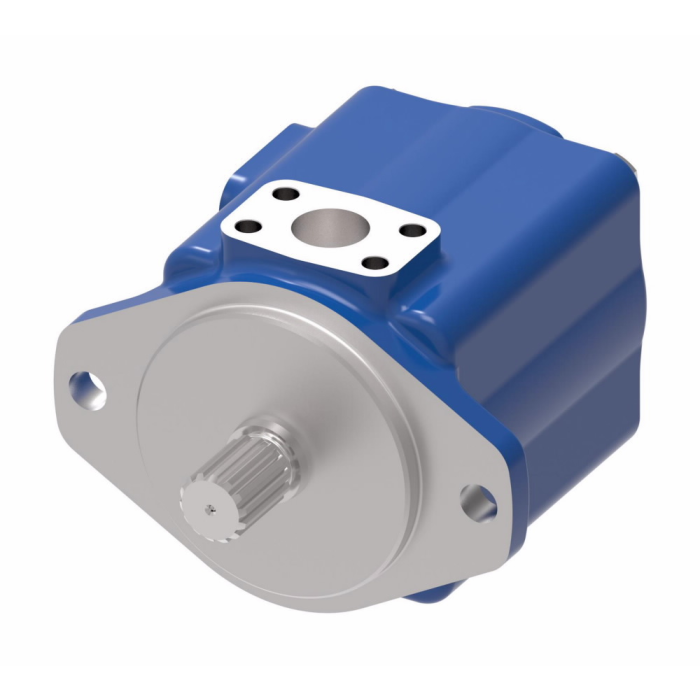

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.45
Displacement
2.45
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
in-Line with Outlet
Rated Flow
18
Rated Flow
18
Ring Size
12
Ring Size
12
Rotation
CW
Seal Material
Buna-N
Series
25VQ
Shaft
13 Tooth SAE B Splined
Shaft
13 Tooth SAE B Splined
Special Features
None
Speed Rating
2700 RPM
Speed Rating
2700 RPM
Supplier Part Number
429946-3
Alternate Part Numbers
Alternate Part Number 25VQ12A11C20, Alternate Part Number C1EH36
Product Weight
32.00 lbs
Product Questions & Answers 2

Product Questions & Answers

got a 25VQ12A-11C20 pump to replace, is this the same one with the splined shaft and clockwise rotation?
Question by: Lee S on Mar 21, 2026, 9:17 AM
Match it up by the identifiers and the key fit points. This pump is model 25VQ12A-11C20 in the 25VQ series, with a 12 ring size, 13 tooth SAE B splined shaft, and CW rotation.
Answer by: Customer Support on Mar 23, 2026, 6:40 AM
runs at 2700 RPM rated speed -- is that enough for a dump truck PTO setup or do I need something with more headroom?
Question by: Dwayne F on Mar 5, 2026, 8:19 PM
For dump truck applications, 2700 RPM is a solid working speed for this pump. The 25VQ series is actually listed for dump truck use, and at 18 GPM rated flow with a 3000 PSI pressure rating, it handles the kind of hydraulic demand those systems put out. Just make sure your PTO output speed stays within that 2700 RPM ceiling and you won't be pushing it past its limits.
Answer by: Customer Support on Mar 6, 2026, 9:27 PM

Similar Products

Part Number Model Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Buy Now
416457-2 25VQ21A-1B20 7/8 Straight Keyed 4.12 21 31.5 90 deg CW from Outlet CW 3000 2500 RPM
416457-3 25VQ21A-1C20 7/8 Straight Keyed 4.12 21 31.5 in-Line with Outlet CW 3000 2500 RPM
416457-4 25VQ21A-1D20 7/8 Straight Keyed 4.12 21 31.5 90 deg CCW from Outlet CW 3000 2500 RPM
416457-5 25VQ21A-1A20 7/8 Straight Keyed 4.12 21 31.5 Opposite Outlet CW 3000 2500 RPM
416457-6 25VQ21A-1B20-L 7/8 Straight Keyed 4.12 21 31.5 90 deg CW from Outlet CCW 3000 2500 RPM
416457-7 25VQ21A-1C20-L 7/8 Straight Keyed 4.12 21 31.5 in-Line with Outlet CCW 3000 2500 RPM
416457-8 25VQ21A-1D20-L 7/8 Straight Keyed 4.12 21 31.5 90 deg CCW from Outlet CCW 3000 2500 RPM
417992-2 25VQ17A-1B20 7/8 Straight Keyed 3.37 17 25.5 90 deg CW from Outlet CW 3000 2500 RPM
417992-3 25VQ17A-1C20 7/8 Straight Keyed 3.37 17 25.5 in-Line with Outlet CW 3000 2500 RPM
417992-4 25VQ17A-1D20- 7/8 Straight Keyed 3.37 17 25.5 90 deg CCW from Outlet CW 3000 2500 RPM
417992-5 25VQ17A-1A20-L 7/8 Straight Keyed 3.37 17 25.5 Opposite Outlet CCW 3000 2500 RPM
417992-6 25VQ17A-1B20-L 7/8 Straight Keyed 3.37 17 25.5 90 deg CW from Outlet CCW 3000 2500 RPM
417992-7 25VQ17A-1C20-L 7/8 Straight Keyed 3.37 17 25.5 in-Line with Outlet CCW 3000 2500 RPM
417992-8 25VQ17A-1D20-L 7/8 Straight Keyed 3.37 17 25.5 90 deg CCW from Outlet CCW 3000 2500 RPM
417993-2 25VQ14A-1B20 7/8 Straight Keyed 2.77 14 21.5 90 deg CW from Outlet CW 3000 2700 RPM
417993-3 25VQ14A-1C20 7/8 Straight Keyed 2.77 14 21.5 in-Line with Outlet CW 3000 2700 RPM
417993-4 25VQ14A-1D20 7/8 Straight Keyed 2.77 14 21.5 90 deg CCW from Outlet CW 3000 2700 RPM
417993-5 25VQ14A-1A20-L 7/8 Straight Keyed 2.77 14 21.5 Opposite Outlet CCW 3000 2700 RPM
417993-7 25VQ14A-1C20-L 7/8 Straight Keyed 2.77 14 21.5 in-Line with Outlet CCW 3000 2700 RPM
417994-2 25VQ12A-1B20 7/8 Straight Keyed 2.45 12 18 90 deg CW from Outlet CW 3000 2700 RPM
417994-3 25VQ12A-1C20 7/8 Straight Keyed 2.45 12 18 in-Line with Outlet CW 3000 2700 RPM
417994-4 25VQ12A-1D20 7/8 Straight Keyed 2.45 12 18 90 deg CCW from Outlet CW 3000 2700 RPM
417994-5 25VQ12A-1A20-L 7/8 Straight Keyed 2.45 12 18 Opposite Outlet CCW 3000 2700 RPM
417994-7 25VQ12A-1C20-L 7/8 Straight Keyed 2.45 12 18 in-Line with Outlet CCW 3000 2700 RPM
421472-2 25VQ14A-11B20 13 Tooth SAE B Splined 2.77 14 21.5 90 deg CW from Outlet CW 3000 2700 RPM
421472-3 25VQ14A-11C20 13 Tooth SAE B Splined 2.77 14 21.5 in-Line with Outlet CW 3000 2700 RPM
421472-4 25VQ14A-11D20 13 Tooth SAE B Splined 2.77 14 21.5 90 deg CCW from Outlet CW 3000 2700 RPM
421472-5 25VQ14A-11A20-L 13 Tooth SAE B Splined 2.77 14 21.5 Opposite Outlet CCW 3000 2700 RPM
421472-6 25VQ14A-11B20-L 13 Tooth SAE B Splined 2.77 14 21.5 90 deg CW from Outlet CCW 3000 2700 RPM
421472-7 25VQ14A-11C20-L 13 Tooth SAE B Splined 2.77 14 21.5 in-Line with Outlet CCW 3000 2700 RPM
421472-8 25VQ14A-11D20-L 13 Tooth SAE B Splined 2.77 14 21.5 90 deg CCW from Outlet CCW 3000 2700 RPM
421475-2 25VQ17A-11B20 13 Tooth SAE B Splined 3.37 17 25.5 90 deg CW from Outlet CW 3000 2500 RPM
421475-3 25VQ17A-11C20 13 Tooth SAE B Splined 3.37 17 25.5 in-Line with Outlet CW 3000 2500 RPM
421475-4 25VQ17A-11D20 13 Tooth SAE B Splined 3.37 17 25.5 90 deg CCW from Outlet CW 3000 2500 RPM
421475-5 25VQ17A-11A20-L 13 Tooth SAE B Splined 3.37 17 25.5 Opposite Outlet CCW 3000 2500 RPM
421475-6 25VQ17A-11B20-L 13 Tooth SAE B Splined 3.37 17 25.5 90 deg CW from Outlet CCW 3000 2500 RPM
421475-7 25VQ17A-11C20-L 13 Tooth SAE B Splined 3.37 17 25.5 in-Line with Outlet CCW 3000 2500 RPM
421475-8 25VQ17A-11D20-L 13 Tooth SAE B Splined 3.37 17 25.5 90 deg CCW from Outlet CCW 3000 2500 RPM
421477-2 25VQ21A-11B20 13 Tooth SAE B Splined 4.12 21 31.5 90 deg CW from Outlet CW 3000 2500 RPM
421477-3 25VQ21A-11C20 13 Tooth SAE B Splined 4.12 21 31.5 in-Line with Outlet CW 3000 2500 RPM
421477-4 25VQ21A-11D20 13 Tooth SAE B Splined 4.12 21 31.5 90 deg CCW from Outlet CW 3000 2500 RPM
421477-5 25VQ21A-11A20-L 13 Tooth SAE B Splined 4.12 21 31.5 Opposite Outlet CCW 3000 2500 RPM
421477-6 25VQ21A-11B20-L 13 Tooth SAE B Splined 4.12 21 31.5 90 deg CW from Outlet CCW 3000 2500 RPM
421477-7 25VQ21A-11C20-L 13 Tooth SAE B Splined 4.12 21 31.5 in-Line with Outlet CCW 3000 2500 RPM
421477-8 25VQ21A-11D20-L 13 Tooth SAE B Splined 4.12 21 31.5 90 deg CCW from Outlet CCW 3000 2500 RPM
429946-2 25VQ12A-11B20 13 Tooth SAE B Splined 2.45 12 18 90 deg CW from Outlet CW 3000 2700 RPM
429946-3 25VQ12A-11C20 13 Tooth SAE B Splined 2.45 12 18 in-Line with Outlet CW 3000 2700 RPM
429946-4 25VQ12A-11D20 13 Tooth SAE B Splined 2.45 12 18 90 deg CCW from Outlet CW 3000 2700 RPM
429946-5 25VQ12A-11A20-L 13 Tooth SAE B Splined 2.45 12 18 Opposite Outlet CCW 3000 2700 RPM
429946-6 25VQ12A-11B20-L 13 Tooth SAE B Splined 2.45 12 18 90 deg CW from Outlet CCW 3000 2700 RPM
429946-7 25VQ12A-11C20-L 13 Tooth SAE B Splined 2.45 12 18 in-Line with Outlet CCW 3000 2700 RPM
429946-8 25VQ12A-11D20-L 13 Tooth SAE B Splined 2.45 12 18 90 deg CCW from Outlet CCW 3000 2700 RPM
578308-2 25VQ19A-1B20 7/8 Straight Keyed 3.74 19 28.5 90 deg CW from Outlet CW 3000 2500 RPM
578308-3 25VQ19A-1C20 7/8 Straight Keyed 3.74 19 28.5 in-Line with Outlet CW 3000 2500 RPM
578308-4 25VQ19A-1D20 7/8 Straight Keyed 3.74 19 28.5 90 deg CCW from Outlet CW 3000 2500 RPM
578308-5 25VQ19A-1A20-L 7/8 Straight Keyed 3.74 19 28.5 Opposite Outlet CCW 3000 2500 RPM
578308-7 25VQ19A-1C20 -L 7/8 Straight Keyed 3.74 19 28.5 in-Line with Outlet CCW 3000 2500 RPM
629379-2 25VQ19A-11B20 13 Tooth SAE B Splined 3.74 19 28.5 90 deg CW from Outlet CW 3000 2500 RPM
629379-3 25VQ19A-11C20 13 Tooth SAE B Splined 3.74 19 28.5 in-Line with Outlet CW 3000 2500 RPM
629379-4 25VQ19A-11D20 13 Tooth SAE B Splined 3.74 19 28.5 90 deg CCW from Outlet CW 3000 2500 RPM
629379-5 25VQ19A-11A20-L 13 Tooth SAE B Splined 3.74 19 28.5 Opposite Outlet CCW 3000 2500 RPM
629379-7 25VQ19A-11C20-L 13 Tooth SAE B Splined 3.74 19 28.5 in-Line with Outlet CCW 3000 2500 RPM
416457-1 25VQ21A-1A20-L 7/8 Straight Keyed 4.12 21 31.5 Opposite Outlet CCW 3000 2500 RPM
417992-1 25VQ17A-1A20 7/8 Straight Keyed 3.37 17 25.5 Opposite Outlet CW 3000 2500 RPM
417993-1 25VQ14A-1A20 7/8 Straight Keyed 2.77 14 21.5 Opposite Outlet CW 3000 2700 RPM
417994-1 25VQ12A-1A20 7/8 Straight Keyed 2.45 12 18 Opposite Outlet CW 3000 2700 RPM
421472-1 25VQ14A-11A20 13 Tooth SAE B Splined 2.77 14 21.5 Opposite Outlet CW 3000 2700 RPM
421475-1 25VQ17A-11A20 13 Tooth SAE B Splined 3.37 17 25.5 Opposite Outlet CW 3000 2500 RPM
421477-1 25VQ21A-11A20 13 Tooth SAE B Splined 4.12 21 31.5 Opposite Outlet CW 3000 2500 RPM
429946-1 25VQ12A-11A20 13 Tooth SAE B Splined 2.45 12 18 Opposite Outlet CW 3000 2700 RPM
578308-1 25VQ19A-1A20 7/8 Straight Keyed 3.74 19 28.5 Opposite Outlet CW 3000 2500 RPM
629379-1 25VQ19A-11A20 13 Tooth SAE B Splined 3.74 19 28.5 Opposite Outlet CW 3000 2500 RPM
