Brennan Industries 2503-16-16-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2503-16-16-FG	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot on a hydraulic line, is this the 45 degree elbow with one JIC flare and one pipe thread?

Question by: Pete B on Mar 28, 2026, 9:56 PM

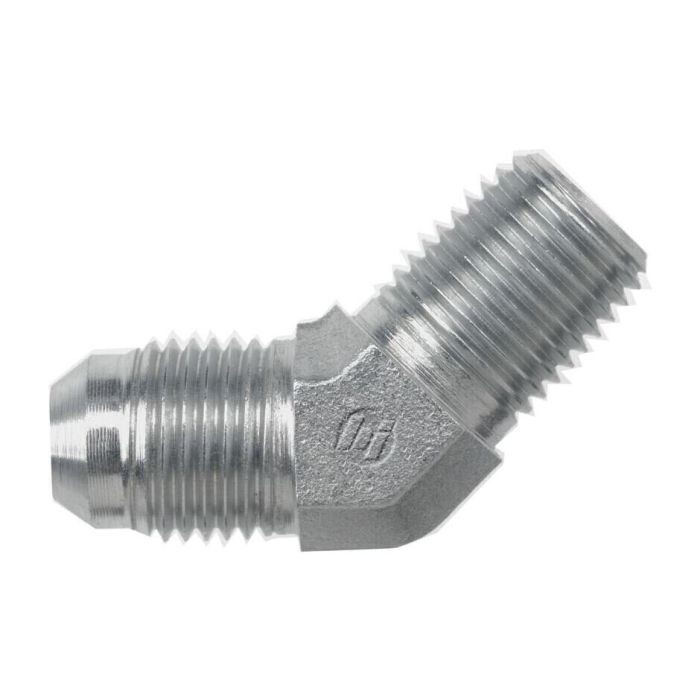

Built as a 45 degree forged elbow, it has a male JIC SAE 37 degree flare on one end and a male NPTF pipe thread on the other. The JIC side is 1-5/16-12 (SAE J514) and the NPTF side is 1-11-1/2 (SAE J476).

Answer by: Customer Support on Mar 30, 2026, 8:10 AM

Does this fitting top out at 3,000 PSI, or is that just the dynamic rating? Trying to figure out if it'll hold up on a loader that sees some pretty hard pressure spikes.

Question by: Dale S on Jan 19, 2026, 2:04 PM

3,000 PSI is the maximum dynamic pressure rating for this fitting, meaning that's what it's rated to handle under active, fluctuating system conditions. Pressure spikes in loader applications fall under dynamic loading, so that 3,000 PSI figure is the one that applies to your situation. As long as your system stays within that ceiling, the fitting is built for it. Forged steel construction gives it solid durability under that kind of repeated stress.

Answer by: Customer Support on Jan 21, 2026, 12:04 PM

What's the pressure rating on this elbow? Just wanna make sure it'll hold up in my hydraulic system.

Question by: Rick W on Mar 1, 2026, 10:10 AM

It's rated for dynamic pressures up to 3,000 PSI, so it should be good for high-pressure hydraulic applications.

Answer by: Customer Support on Mar 2, 2026, 7:32 PM

#16 MJIC X #16 MP 45*
