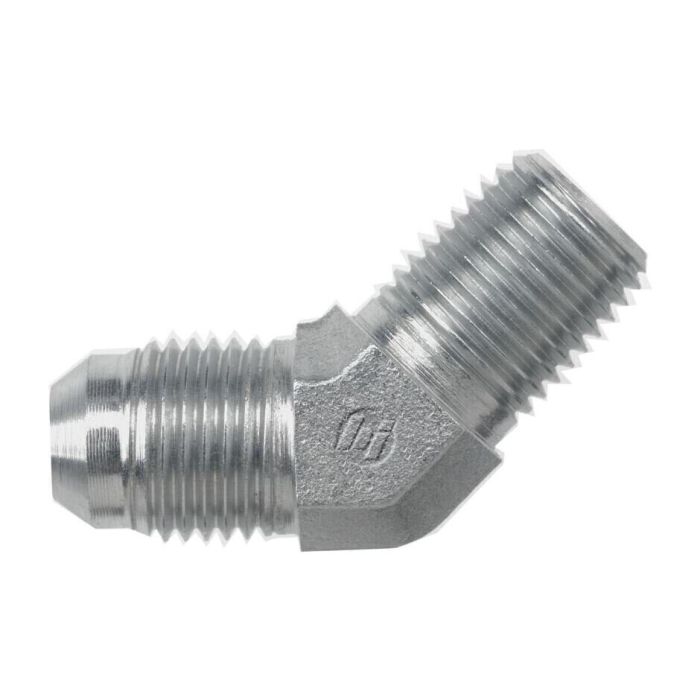

04MJ-02MP 45 DEG Elbow FORGED

On the B1 end you get a male JIC SAE 37 degree flare thread in 7/16-20, built to SAE J514. The B2 end is a male NPTF pipe thread in 1/8-27, built to SAE J476.

This elbow fitting uses a male JIC SAE 37-degree flare on one side and male NPTF threads on the other. The JIC side is commonly used in hydraulic systems where you need a reliable seal, while the NPTF is often found in applications needing a dry seal without sealant.

6,000 PSI is the maximum dynamic pressure rating for this fitting, so that number already accounts for pressure conditions in active hydraulic systems rather than just static loads. Forged steel construction gives it solid resistance to mechanical stress, which helps when a line cycles through pressure changes repeatedly. That said, staying reasonably below the rated ceiling during normal operation is always the smarter way to protect any fitting long term.
