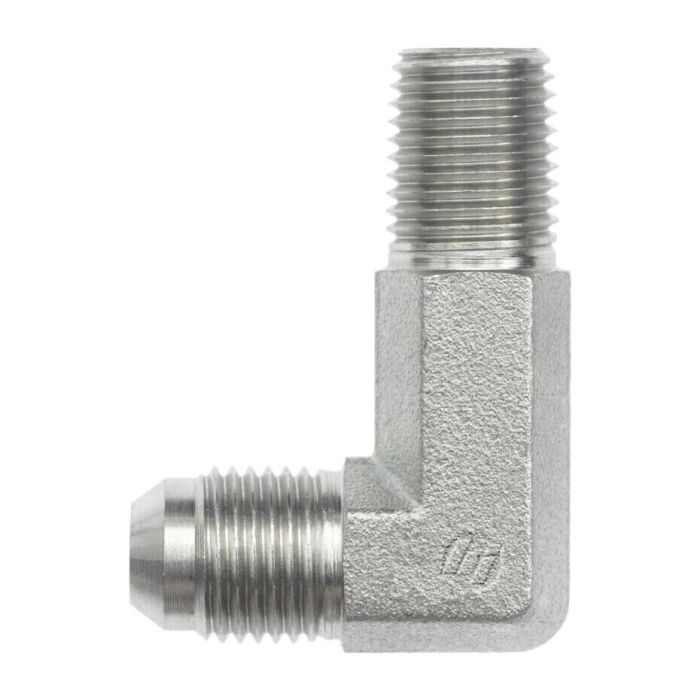

04MJ-04MP 90 DEG Elbow LONG

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-L-04-04-FG

Product Questions & Answers 3

Product Questions & Answers

got a line running 5500 PSI dynamic and need a 90 degree turn from a JIC fitting over to an NPTF port, this elbow gonna hold up to that?

Question by: Gary T on Jan 6, 2026, 7:52 AM

At 5,500 PSI you've got solid headroom here. The fitting is rated for 6,000 PSI dynamic pressure, so that application falls well within its working range. The JIC end is a 7/16-20 male SAE 37-degree flare, and the NPTF end is 1/4-18, so as long as both ports on your line match those thread sizes, you're in good shape.

Answer by: Customer Support on Jan 7, 2026, 3:10 PM

What kind of pressure can this elbow handle?

Question by: Rick R on Jul 17, 2025, 6:02 AM

This 90-degree elbow fitting is rated for a maximum dynamic pressure of 6,000 PSI, making it suitable for high-pressure hydraulic applications.

Answer by: Customer Support on Jul 18, 2025, 8:25 AM

trying to swap out an elbow on a line, is this one JIC on one side and pipe thread on the other?

Question by: Shawn P on Dec 21, 2025, 12:58 PM

On the connections, it is a male JIC SAE 37 degree flare on one end with 7/16-20 threads, and a male NPTF on the other end with 1/4-18 threads.

Answer by: Customer Support on Dec 23, 2025, 6:02 AM
