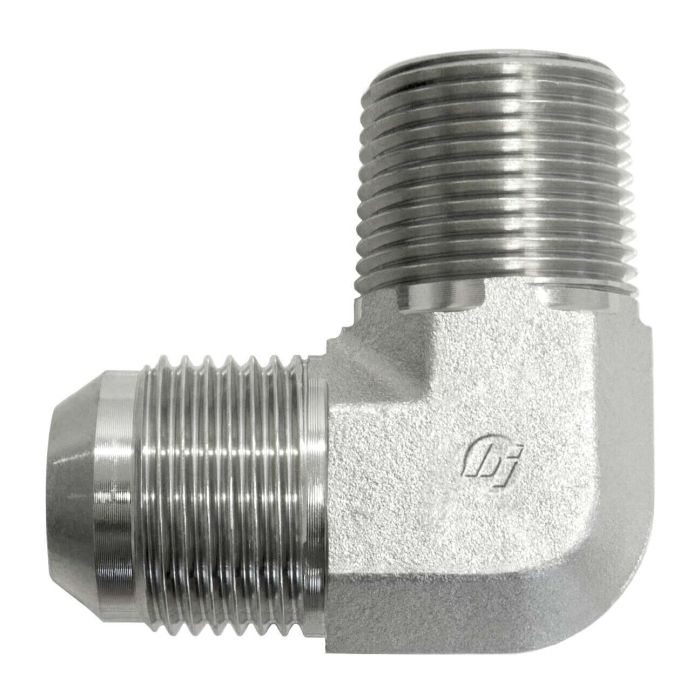

20MJ-24MP 90 DEG ELBOW

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-20-24-FG	Product Weight 1.69 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a 1-5/8-12 JIC line and a 1-1/2 NPTF port that need to meet at a 90, does this fitting bridge both of those in one piece?

Question by: Johnny A on Dec 17, 2025, 11:19 AM

That's what it does. One end is a male JIC SAE 37-degree flare at 1-5/8-12, and the other is a male NPTF at 1-1/2-11-1/2. Both threads are on the same forged steel elbow, so you're making that 90-degree turn and the thread transition all in one shot. No adapter stacking needed.

Answer by: Customer Support on Dec 18, 2025, 11:53 AM

trying to swap an elbow out on a line, what are the thread types on this 20MJ-24MP?

Question by: Curt H on Apr 5, 2026, 8:34 AM

On the B1 side you get a male JIC SAE 37 degree flare thread, size 1-5/8-12 (SAE J514). The B2 side is a male NPTF pipe thread, size 1-1/2-11-1/2 (SAE J476).

Answer by: Customer Support on Apr 7, 2026, 6:08 AM

Is this elbow okay for hooking up some hydraulic lines in a tight spot?

Question by: Brett M on Jan 2, 2026, 6:47 AM

Yes, this 90-degree elbow features a compact design with an overall length of 2.640 mm and a centerline length of 2.200 mm, making it suitable for installations in confined spaces where intricate hydraulic lines arrangements are needed.

Answer by: Customer Support on Jan 3, 2026, 12:55 PM
