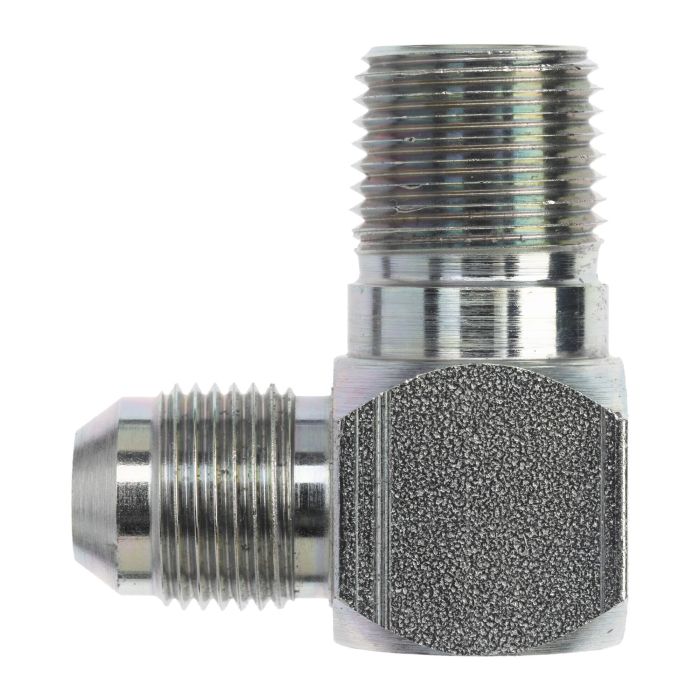

06MJ-04MP 90 ELB BRASS

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-06-04-B	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook up a JIC line to a pipe thread port at a 90, is this the right kind of elbow?

Question by: Earl A on Nov 18, 2025, 9:45 AM

For that setup, it matches a male JIC SAE 37 degree flare on one end and a male NPTF on the other, arranged as a 90 degree elbow. The JIC side is 9/16-18 (SAE J514) and the NPTF side is 1/4-18 (SAE J476).

Answer by: Customer Support on Nov 20, 2025, 6:44 AM

What's the deal with the ends on this thing? I need to hook it up to something with JIC and NPTF fittings.

Question by: Earl R on Oct 26, 2025, 7:06 AM

This elbow adapter has a Male JIC SAE 37 Degree Flare on one side and a Male NPTF on the other. It's made to give you a solid connection between those two types of fittings.

Answer by: Customer Support on Oct 27, 2025, 10:49 AM

what thread types are on each end of this fitting? trying to figure out if it'll work in my setup before I order

Question by: Shane M on Oct 5, 2025, 8:07 AM

One end is a 9/16-18 Male JIC SAE 37 Degree Flare, which follows SAE J514. The other end is a 1/4-18 Male NPTF, built to SAE J476. So if your system has a JIC female on one side and a NPTF female port on the other, this elbow connects them at a 90 degree angle.

Answer by: Customer Support on Oct 7, 2025, 6:00 AM
