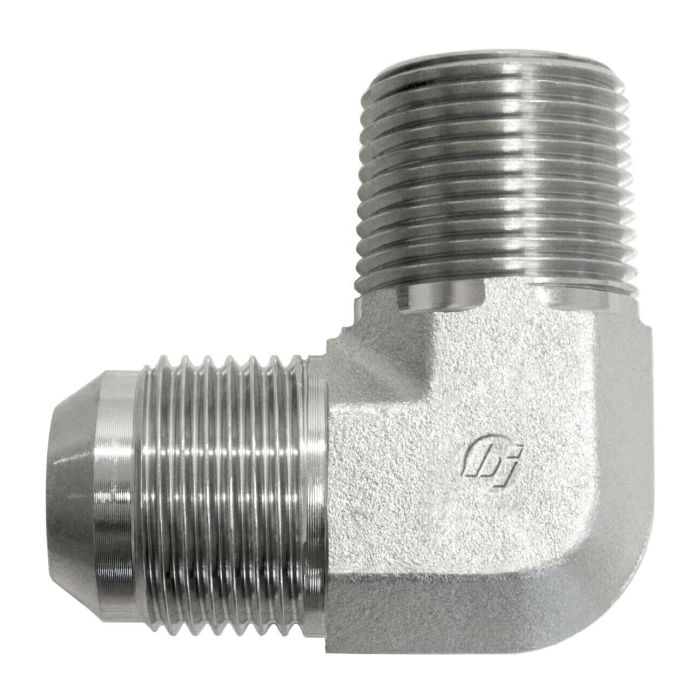

#5 MJIC X #4 MP 90*

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-05-04-FG	Product Weight 0.00 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the max pressure this elbow can handle in a working hydraulic line?

Question by: Chad H on Jan 14, 2026, 7:48 PM

Rated for up to 6,000 psi dynamic pressure, so it holds up fine in most industrial hydraulic circuits running at standard operating pressures. The forged steel construction is a big part of why it can handle that load consistently over time.

Answer by: Customer Support on Jan 16, 2026, 8:24 AM

got a 1/4 nptf port and need to turn the line 90, is this the right elbow for that?

Question by: Pete E on Jan 17, 2026, 5:57 PM

For a 1/4-18 male NPTF connection on one end and a 90 degree turn, this fitting matches that thread spec and gives you a male NPTF side plus a male JIC 37 degree flare on the other side. The JIC end is size 1/2-20 (SAE J514), so it works when your hose or tube side is a #5 MJIC.

Answer by: Customer Support on Jan 19, 2026, 8:43 AM

What's the pressure rating on this elbow?

Question by: Duane H on Jan 20, 2026, 11:22 AM

This forged steel elbow is rated for dynamic pressures up to 6,000 psi.

Answer by: Customer Support on Jan 21, 2026, 9:16 PM
