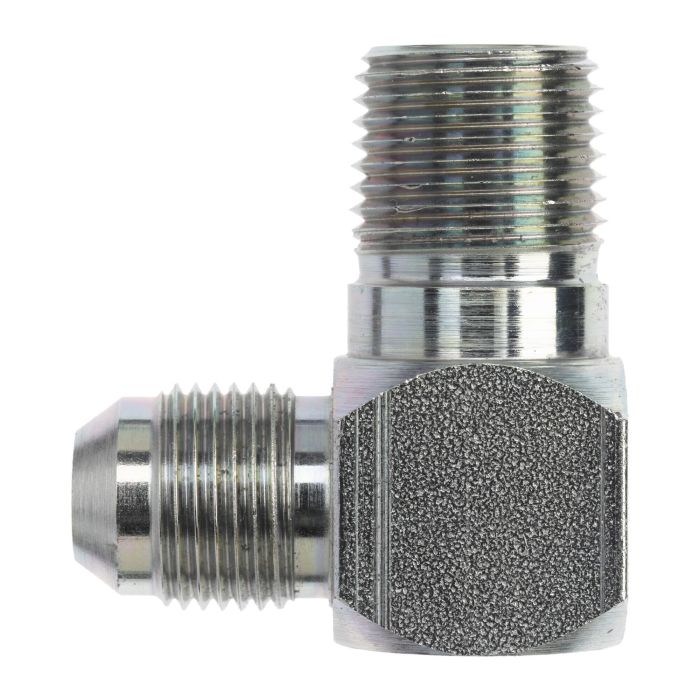

04MJ-02MP 90 ELB BRASS 2501-04-02-B

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-04-02-B	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a JIC line to a pipe thread port, will this elbow do that or am I mixing stuff up

Question by: Johnny B on Jan 29, 2026, 11:06 AM

For connecting those two thread styles, it matches up as a male JIC SAE 37 degree flare on one end and a male NPTF on the other. On this part the JIC side is 7/16-20 (SAE J514) and the NPTF side is 1/8-27 (SAE J476).

Answer by: Customer Support on Jan 31, 2026, 6:59 AM

thread sizes on this thing, is it a 7/16-20 JIC on one end and 1/8-27 NPT on the other, or did I read that backwards?

Question by: Judy T on Nov 30, 2025, 9:20 AM

You got it right. The JIC end is 7/16-20 with a 37-degree male flare, and the other end is a 1/8-27 male NPTF. The JIC side meets SAE J514 and the NPTF side meets SAE J476, so both ends follow standard specs. Just make sure your mating fittings match those thread sizes before you go to put it together.

Answer by: Customer Support on Dec 1, 2025, 3:47 PM

Will this elbow work with standard fittings or are there special considerations?

Question by: Lyle A on Feb 9, 2026, 8:12 AM

This 90-degree elbow adapter features a Male JIC SAE 37-degree flare on one end and a Male NPTF on the other, ensuring compatibility with industry-standard threads adhering to SAE J514 and SAE J476 specifications.

Answer by: Customer Support on Feb 10, 2026, 8:43 AM
