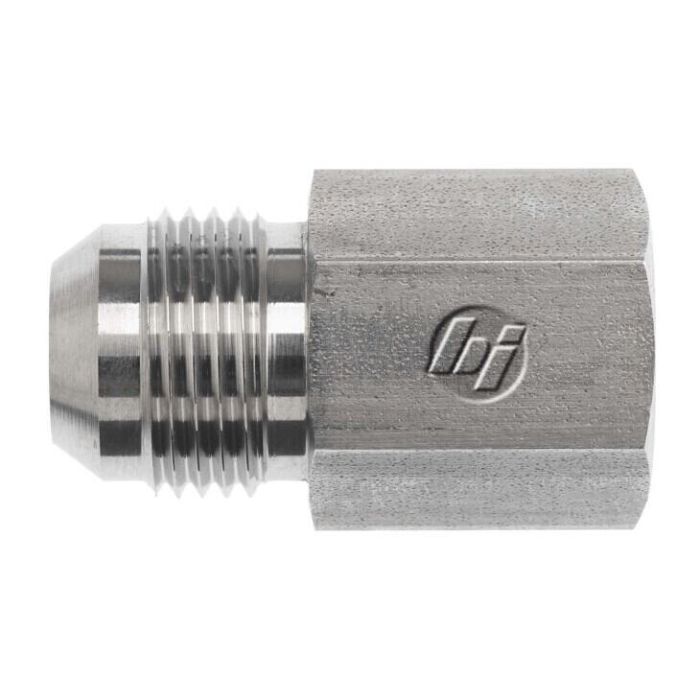

#16 MJIC X #20 FP

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2405-16-20	Product Weight 0.94 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up in a hydraulic system that sees around 2,500 PSI?

Question by: Eddie M on Nov 11, 2025, 10:07 AM

The #16 MJIC X #20 FP is rated for a maximum dynamic pressure of 2,500 PSI, so it should be suitable for your hydraulic system if it doesn't exceed that pressure.

Answer by: Customer Support on Nov 13, 2025, 6:44 AM

Got a 1-1/4 NPTF port on a manifold block, will this fitting thread straight into it on the female end?

Question by: Keith A on Dec 28, 2025, 12:51 PM

That female end is a 1-1/4-11-1/2 NPTF thread, so yes, it'll mate up with a standard 1-1/4 NPTF port without any adapter in between. The male side is a #16 JIC SAE 37 degree flare at 1-5/16-12, so whatever hose or tube assembly you're connecting on that end needs to match that JIC size and thread pitch. Rated to 2,500 psi dynamic, so it should hold up fine in most hydraulic circuits running at normal working pressures.

Answer by: Customer Support on Dec 30, 2025, 6:38 AM
