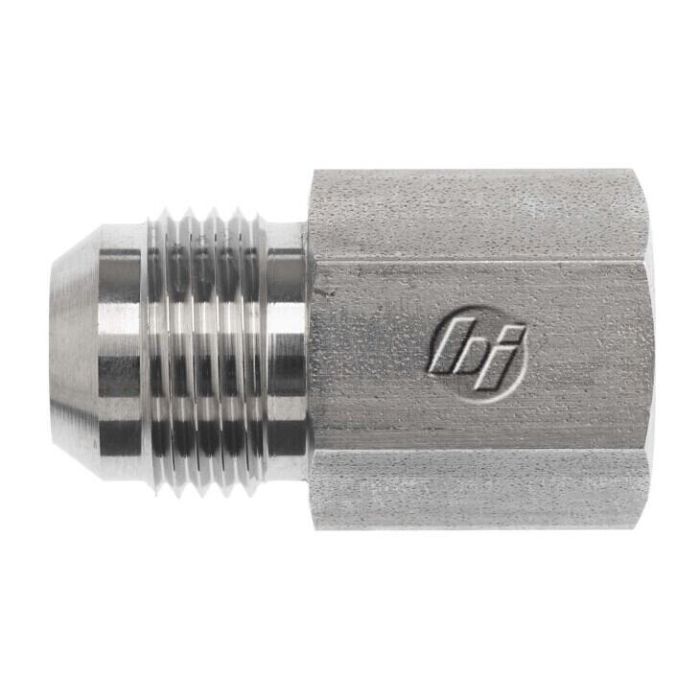

04MJ-02FP STRAIGHT

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2405-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Does this adapter go from a JIC flare fitting over to an NPTF port, or is it the other way around?

Question by: Rusty R on Oct 12, 2025, 8:32 PM

The male end is a 7/16-20 JIC SAE 37-degree flare, and the female end is a 1/8-27 NPTF. So you'd be threading the JIC side into a flare nut or swivel and the NPTF end onto a pipe-threaded port. That configuration is pretty common when you're tying a hydraulic line into a threaded port on a pump, valve, or manifold.

Answer by: Customer Support on Oct 14, 2025, 2:45 PM

What’s the highest pressure this fitting can handle?

Question by: Rick T on Jun 22, 2025, 8:40 AM

This adapter is rated for a maximum dynamic pressure of 6,000 psi, so it should hold up well in demanding hydraulic systems.

Answer by: Customer Support on Jun 23, 2025, 7:51 PM

got a hose end that’s 7/16-20 JIC, will this screw into a 1/8-27 pipe port without any goofy adapters

Question by: Rusty M on Dec 27, 2025, 4:52 PM

For hooking a male JIC 37 degree flare to a female NPTF port, that’s exactly what the 04MJ-02FP is built for. One side is male JIC SAE 37 degree flare, 7/16-20 thread, and the other side is female NPTF, 1/8-27.

Answer by: Customer Support on Dec 29, 2025, 6:02 AM
