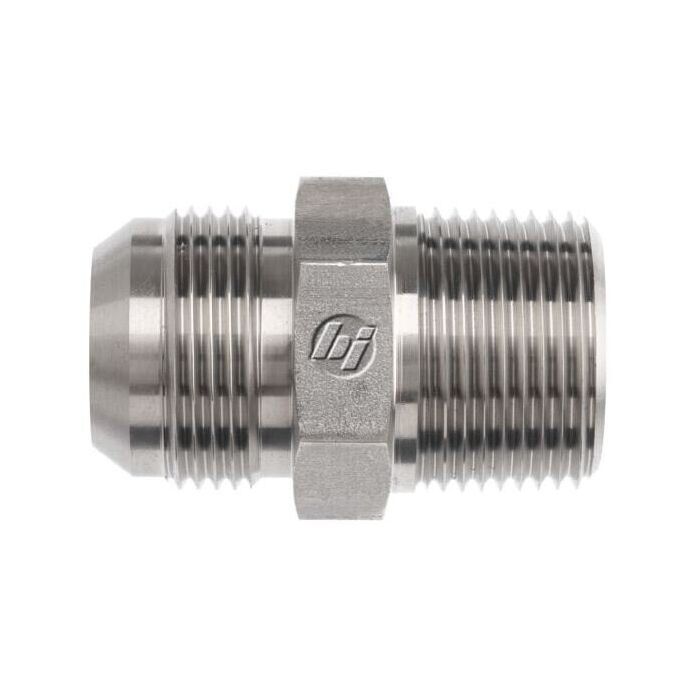

#6 MJ X #16 MP ST.

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2404-06-16	Product Weight 0.32 lbs

Product Questions & Answers 2

Product Questions & Answers

thread sizes on this thing got me turned around a little, the JIC side is 9/16-18 and the NPTF side is 1-11-1/2, that right?

Question by: Debbie K on Apr 4, 2026, 12:48 PM

You got it. The JIC end runs a 9/16-18 thread and connects using a 37-degree flare, built to SAE J514. The NPTF side is a 1-inch 11-1/2 threads-per-inch connection, covered under SAE J476. Both ends are male, so make sure your mating ports are female on each side before you go to install it.

Answer by: Customer Support on Apr 6, 2026, 6:20 AM

got a hose end with a 9/16-18 JIC flare, will this screw right into it and then into a 1 inch nptf port?

Question by: Randy M on Jan 10, 2026, 8:41 AM

Match the thread details and it lines up: one end is a #6 male JIC 37 degree flare with 9/16-18 threads, and the other end is a #16 male NPTF with 1-11-1/2 threads. It is a straight steel adapter in Brennan’s 2404 series.

Answer by: Customer Support on Jan 11, 2026, 3:16 PM
