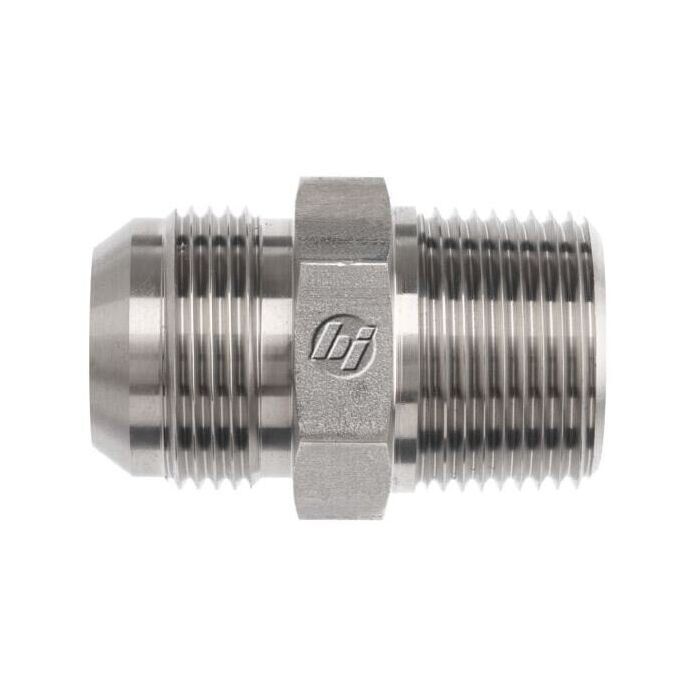

04MJ-04MP STRAIGHT

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2404-04-04	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 7/16-20 JIC port on a hydraulic block and need to tie into a 1/4 inch NPT line, this the right adapter for that?

Question by: Rod P on May 28, 2025, 4:25 PM

That's what this one's built for. One end is a 7/16-20 Male JIC SAE 37-degree flare, and the other is a 1/4-18 Male NPTF. Both ends are male, so you'd be threading this into female ports on each side. Rated to 6,000 PSI dynamic pressure, so it holds up fine in most standard hydraulic circuits.

Answer by: Customer Support on May 30, 2025, 8:23 AM

got a hose end that’s 7/16-20 JIC, will this adapter screw right onto it and then give me 1/4-18 NPTF on the other side?

Question by: Glen C on Oct 8, 2025, 6:04 PM

For a JIC to pipe-thread hookup, that’s exactly what this part is. One end is a male JIC SAE 37 degree flare with 7/16-20 threads (SAE J514), and the other end is a male NPTF with 1/4-18 threads (SAE J476).

Answer by: Customer Support on Oct 10, 2025, 10:10 AM
