Adaptall Metric Din Bulkhead-Male Bspp 5040-L18-12ESX

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040-L18-12ESX	Product Weight 0.37 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line running through a bulkhead panel and need something that'll tie a metric DIN tube side to a BSPP port on the other end, this the right piece for that?

Question by: Dwight W on Sep 14, 2025, 7:48 PM

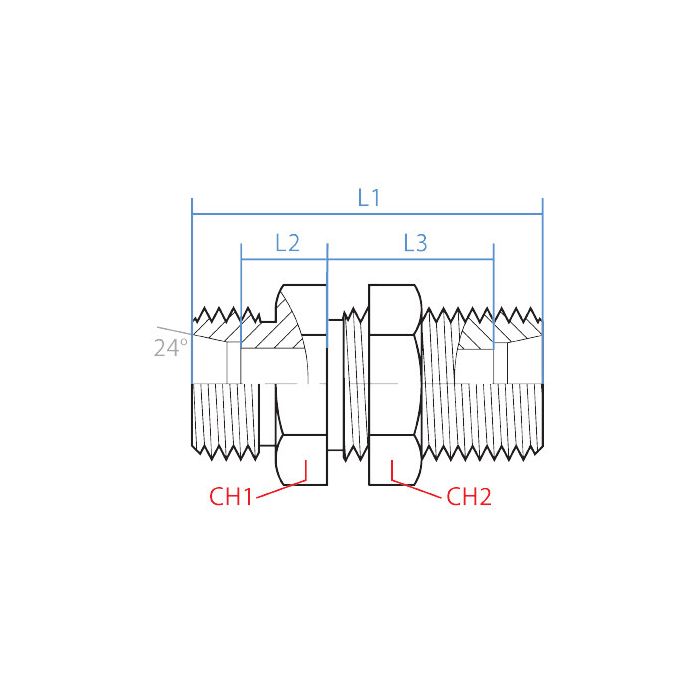

That's what this fitting does. One end is M26 x 1.5 DIN tube, male, sized at L18. The other end is G 3/4-14 BSPP, also male, at 3/4 inch. It's built straight through with no angle, so it works clean when you're passing a line through a panel or bulkhead wall and need those two thread standards to meet up on either side.

Answer by: Customer Support on Sep 16, 2025, 6:52 AM

Will this bulkhead fitting hold up to typical hydraulic pressures without leaking?

Question by: Terry H on Apr 4, 2026, 5:01 PM

This Metric DIN Bulkhead is made from steel, which should provide a secure, reliable connection for standard hydraulic applications.

Answer by: Customer Support on Apr 6, 2026, 6:46 AM
