Adaptall Stainless Mjic X Male Din2353L SS9605-16-L28-36

Specifications

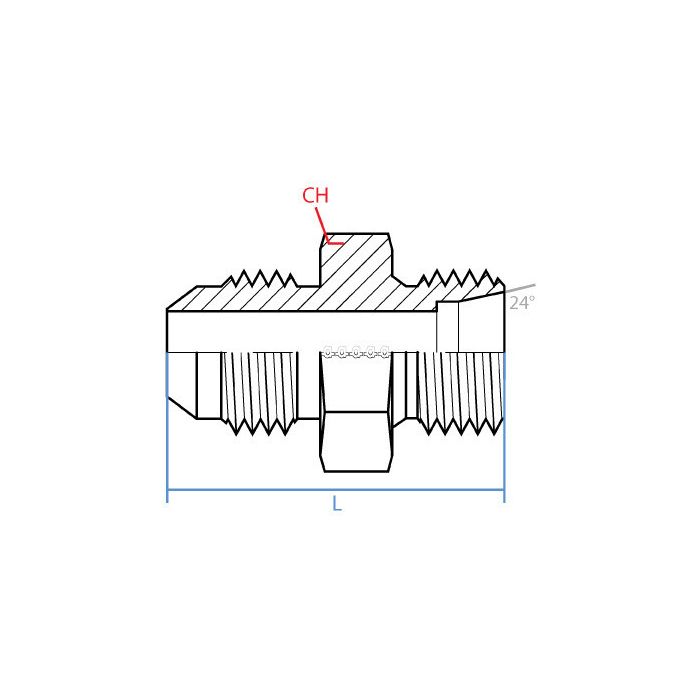

CH Width 41mm	L Length 49.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size L28	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9605-16-L28-36	Product Weight 0.51 lbs

Product Questions & Answers 3

Product Questions & Answers

got a system running JIC on one end and DIN fittings on the other, this stainless one gonna bridge that gap without needing extra pieces?

Question by: Frank G on Jul 23, 2025, 12:03 PM

One adapter handles the whole transition. One side is a 1-5/16-12 UN Male JIC and the other is an M36 x 2.0 Male DIN 2353 Light series tube end, so you're going straight from JIC to DIN in a single compact unit. No extra hardware needed in between.

Answer by: Customer Support on Jul 24, 2025, 4:40 PM

got a hose end that’s 1-5/16-12 UN JIC male and i need to tie into an M36 x 2.0 DIN 2353 Light tube end. is this the right adapter?

Question by: Kent G on Feb 7, 2026, 12:30 PM

For a straight transition between those two standards, this adapter matches a 1-5/16-12 UN Male JIC on one side and an M36 x 2.0 Male DIN 2353 Light (L28) tube end on the other. It is a single-piece stainless adapter meant to bridge JIC to DIN 2353 Light in one compact fitting.

Answer by: Customer Support on Feb 8, 2026, 9:46 PM

Will this here fitting hold up alright if it's gonna be seeing some nasty chemicals on the regular?

Question by: Cody A on Apr 28, 2025, 5:39 PM

Being made from stainless steel, this adapter is a good choice where you've got corrosive stuff around or if things need to be extra squeaky clean.

Answer by: Customer Support on Apr 29, 2025, 9:30 PM
