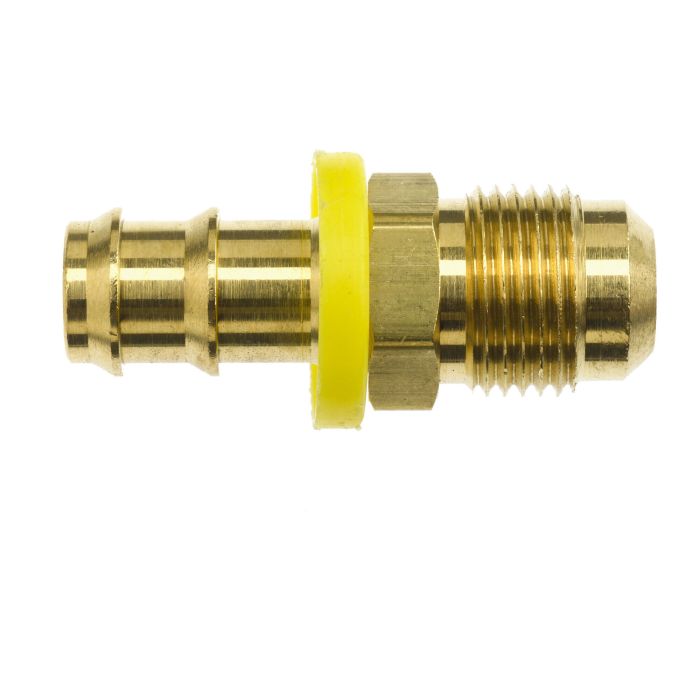

04PL-04MJ STRAIGHT BRASS

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2116-04-04-B	Product Weight 0.03 lbs

Product Questions & Answers 2

Product Questions & Answers

Does this fitting work with standard 1/4 inch push lock hose, or do I need something special to get it to seat right?

Question by: Roger H on Jan 24, 2026, 5:37 PM

Push lock barb end accepts standard 1/4 inch push lock hose. Just push the hose fully onto the barb until it seats and you're good. The male JIC end is a 7/16-20 thread with a 37 degree flare, so make sure the mating port or fitting on the other end matches that spec before you torque it down.

Answer by: Customer Support on Jan 26, 2026, 12:10 PM

got a push-lock hose with a 1/4 barb on it. will this screw right onto a 7/16-20 male JIC port?

Question by: Sheila C on Sep 10, 2025, 5:49 PM

On the hose side, it’s a 1/4 push lock hose barb. On the threaded side, it’s a 7/16-20 male JIC SAE 37 degree flare, made to SAE J514. That means it threads into a matching female JIC 7/16-20 flare connection.

Answer by: Customer Support on Sep 12, 2025, 6:42 AM
