Stainless Mbspp X Fnpt

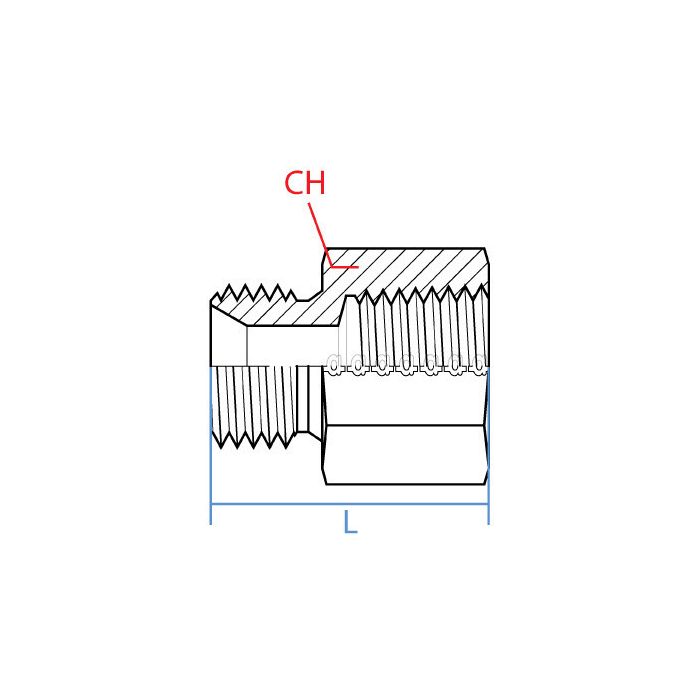

CH Width 28.5mm	L Length 30.7mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9035-08-04	Product Weight 0.17 lbs

Product Questions & Answers

got a machine with a G 1/2 - 14 port and i need to hook up a 1/4 - 18 nptf line, is this the right adapter?

Question by: Johnny C on May 19, 2025, 9:00 PM

For that thread mix, it matches up. One end is a male BSPP thread labeled G 1/2 - 14, and the other end is a female 1/4 - 18 NPTF port.

Answer by: Customer Support on May 21, 2025, 6:19 AM
