Adaptall Stainless 316 Mbspp X Mnpt SS9007-16-12

Specifications

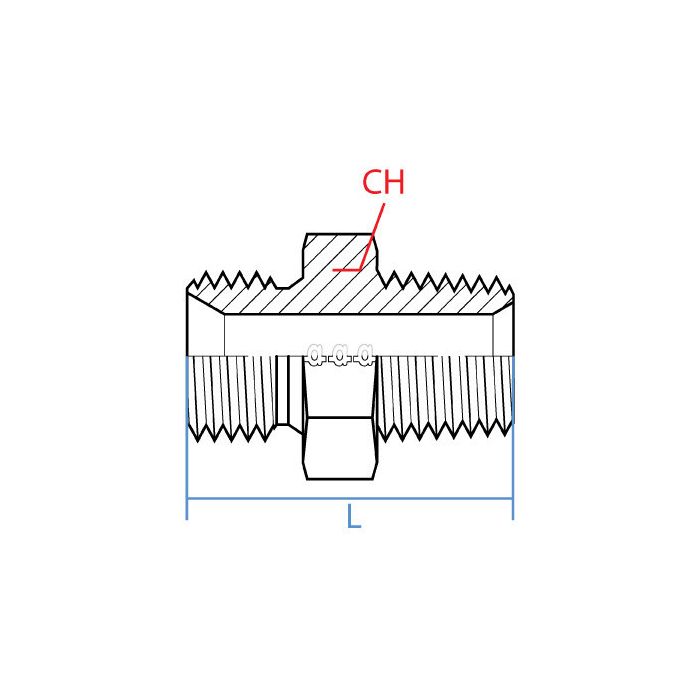

CH Width 41mm	L Length 51.3mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9007-16-12	Product Weight 0.44 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment that runs on a British-threaded hydraulic line and I need to tie it into an NPT system on my end. This fitting work for that kind of hookup?

Question by: Janet R on Sep 23, 2025, 6:39 AM

That's the kind of job this fitting handles. One end is a 1-inch male BSPP (G 1-11 thread) and the other is a 3/4-inch male NPT (3/4-14 NPTF). So if you've got a BSPP port on one side and an NPT port on the other, this bridges that gap in a straight-line configuration. Both ends are male, so you'll be threading into female ports on each side of your connection.

Answer by: Customer Support on Sep 24, 2025, 12:11 PM

So this is a straight adapter... will it hold up to normal hydraulic pressures, or is it more for low-pressure stuff?

Question by: Curt R on Apr 23, 2025, 2:14 PM

This fitting is made from 316 stainless, so it's plenty durable for typical hydraulic applications. Just be sure to verify it matches your system's pressure needs.

Answer by: Customer Support on Apr 25, 2025, 7:13 AM
