Alternate Part NumberC1AZ83, Alternate Part Number MI-00321992, Alternate Part Number MINO-00015F66158
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Drop Dimension
1.55
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.50
End Size 2
0.88
End Type 1
NPSM
End Type 2
SAE ORB
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
got a 1/2 female pipe swivel on one side and need to swing it into a port, is this the right 45 degree adapter?
Question by: Jerry J on Feb 8, 2026, 4:55 PM

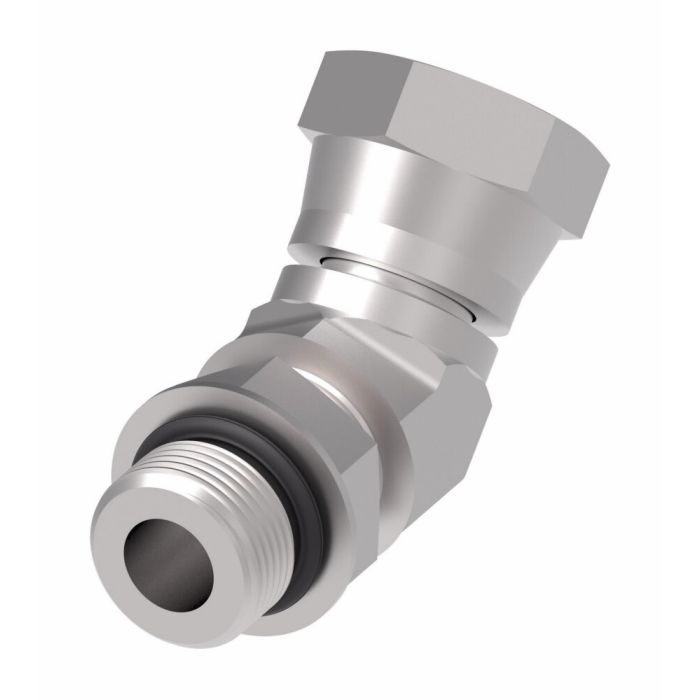

Built for exactly that kind of hookup, it is a 2067 Series 45° elbow adapter with a 1/2 in NPSM female end on one side and a 10 size SAE ORB male end on the other.
Answer by: Customer Support on Feb 10, 2026, 6:12 AM
what industries is this adapter rated for, and does it hold up in rougher environments?
Question by: Ralph P on Dec 8, 2025, 8:17 PM
Carbon steel construction with Dura-Kote plating gives it solid corrosion resistance, which is why it shows up across some pretty demanding sectors. Listed applications include marine and military use, offshore drilling, chemical processing, pulp and paper, and food and beverage. That's a range that covers both wet and chemically aggressive environments, so it's not just a shop fitting.
Answer by: Customer Support on Dec 10, 2025, 7:26 AM
