Alternate Part NumberC1AZ71, Alternate Part Number MI-00321905, Alternate Part Number MINO-00015F66142
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.75
End Size 2
0.88
End Type 1
NPSM
End Type 2
SAE ORB
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Trying to hook a pipe thread line up to an SAE O-ring boss port, is this the straight adapter for that?
Question by: Shawn W on Apr 1, 2025, 9:58 PM

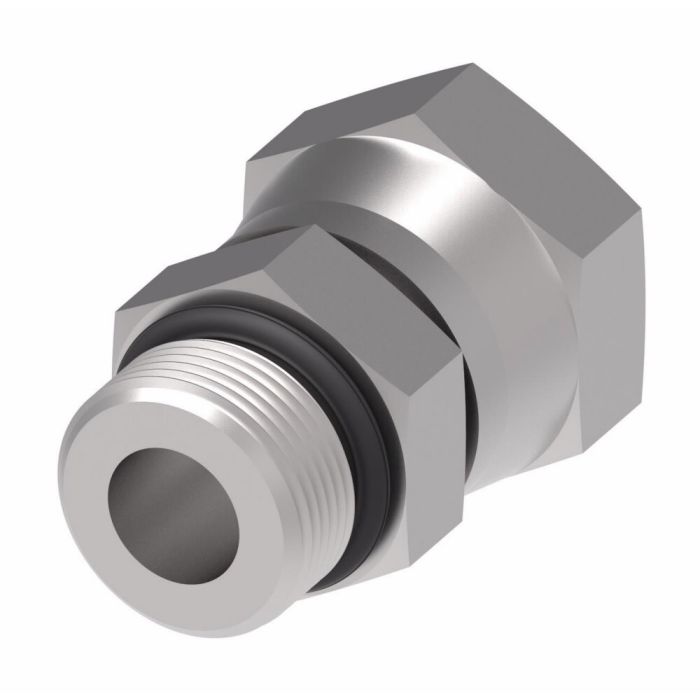

For that kind of connection, it’s a straight adapter that goes from an NPSM female swivel end to an SAE ORB male end.
Answer by: Customer Support on Apr 3, 2025, 8:29 PM
does this adapter work for connecting NPSM female fittings to SAE O-ring boss ports, or am I lookin at the wrong part?
Question by: Brenda S on Jul 6, 2025, 7:02 AM
That's exactly what this one does. One end is 3/4 NPSM female, the other is 7/8 SAE O-ring boss male, so if those are the thread types you're working with, you've got the right adapter. The swivel design on the female end also gives you a little flexibility during installation so you're not fighting alignment.
Answer by: Customer Support on Jul 8, 2025, 6:12 AM
So this adapter, it's got a female NPSM end and a male SAE O-ring boss? Just want to be sure I'm readin' that right.
Question by: Shawn W on Dec 6, 2025, 8:47 PM
That's correct. This adapter features a female NPSM connection on one end and a male SAE O-ring Boss on the other.
Answer by: Customer Support on Dec 8, 2025, 11:50 AM
