Alternate Part NumberC1AZ47, Alternate Part Number MI-00305241, Alternate Part Number MINO-00015F54160
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE 070220
Drop Dimension
2.33
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Type 1
SAE ORB
End Type 2
SAE 37
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
does this fit up with a 90 degree elbow or is it already built that way
Question by: Dean H on Nov 27, 2025, 10:16 AM

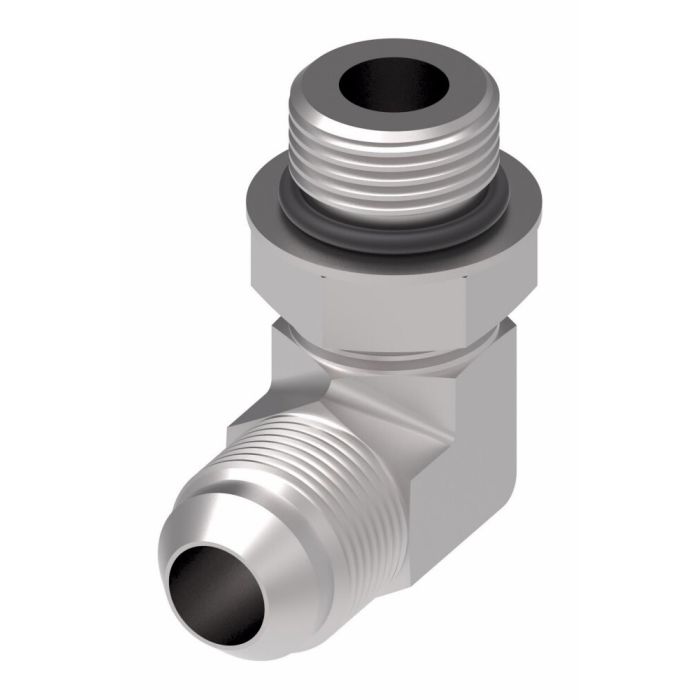

Already built in. The 2062-20-24S comes configured as a 90 degree elbow adapter right out of the box, so there's no assembly needed on that end. One side is a 20-series SAE O-Ring Boss male port and the other terminates in a 24-series SAE 37 degree male JIC flare. You just need to confirm those thread sizes match your lines before ordering.
Answer by: Customer Support on Nov 28, 2025, 8:56 PM
What kinda applications is this elbow adapter good for?
Question by: Earl R on Jun 23, 2025, 8:50 PM
Eaton Aeroquip designed this adapter for use in marine and military applications, as well as chemical processing, pulp and paper industries, and even food and beverage processing. It's also suitable for off-shore drilling.
Answer by: Customer Support on Jun 25, 2025, 8:32 AM
got a hose end that’s 24 JIC male, will this elbow mate up to it or am i mixin fittings
Question by: Ricky S on Jun 18, 2025, 9:30 AM
This adapter is a 90 degree elbow with a male SAE 37 degree (JIC) on one end and a male SAE O-Ring Boss (ORB) on the other. It is meant to connect a JIC female swivel to the SAE 37 side, while the ORB male threads into an ORB port.
Answer by: Customer Support on Jun 20, 2025, 6:31 AM
